Instek
Instek, also sold as GW Instek, covers general-purpose bench instruments at accessible prices: electronic loads, digital oscilloscopes, multiple output DC power supplies, AC power sources and LCR meters.
The line suits education, service work and production test where instruments are needed in quantity rather than at the top of the specification. For power products, check whether outputs are genuinely isolated from each other if you plan to create a split supply, and confirm total power output, since the sum of all channels at maximum is usually less than the individual ratings imply.
Search
Price
The Instek LCR-8250A is a high-precision LCR meter offering a wide frequency range from 10 Hz to 50 MHz and 6-digit resolution. Ideal for component testing, it provides accurate measurements of L, C, R, D, Q, ESR, Z, and θ with 0.05% basic accuracy. Connectivity options include USB, GPIB, LAN, and RS-232 for seamless integration.
The Instek APS-7100 is a programmable AC power source offering 1000 VA output, 310 Vrms voltage, and 8.4 Arms current. Ideal for precision testing and simulation, it features high accuracy, multiple protection functions, and RS-232, USB, and LAN interfaces for automated control.

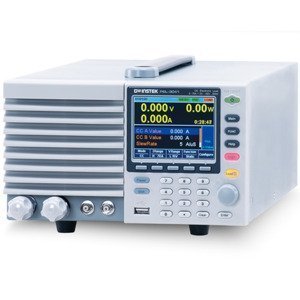

The Instek PEL-3041H is a high-performance DC electronic load from the PEL-3000H series, offering single-input testing with 800V, 17.5A, and 350W capabilities. Ideal for power supply and battery testing, it provides precise measurements and multiple load modes for reliable performance validation.
The Instek LCR-6100 is a high-precision LCR meter for accurate measurement of inductance, capacitance, and resistance. With a frequency range of 10 Hz to 100 kHz, 0.05% basic accuracy, and a 5-digit LCD, it’s ideal for R&D and manufacturing. Includes USB and RS-232 interfaces.
The Instek GDS-3654A is a 4-channel, 650 MHz mixed signal oscilloscope with 5 GS/s sampling rate and 200 Mpts memory depth. Ideal for advanced debugging and analysis, it features a 12-bit vertical resolution, 10.1-inch touchscreen, and built-in logic analyzer for comprehensive signal testing.

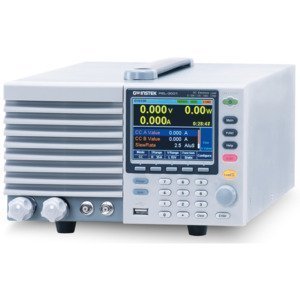

The Instek PEL-3211 is a high-power DC electronic load from the PEL-3000 series, offering a single input with 150V, 420A, and 2.1kW capacity. It provides multiple load modes (CC, CV, CP, CR) for accurate testing of power supplies and batteries, ensuring reliable performance in demanding applications.
The Instek GSP-9300B Spectrum Analyzer delivers precise RF signal analysis from 9 kHz to 3 GHz with a wide dynamic range and high sensitivity. Ideal for EMC/EMI testing, modulation analysis, and power measurement in benchtop applications.

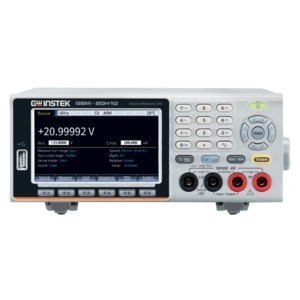

The Instek GSM-20H10G is a quad-channel Source Measure Unit (SMU) offering precision voltage and current sourcing/measurement up to ±210V and ±1.05A with 22W power. Ideal for semiconductor characterization, it features 4-quadrant operation, high accuracy, and GPIB interface for automated testing.
The Instek AFG-3031 is a 30 MHz arbitrary function generator with one channel, offering 16-bit resolution and 128k-point memory. It supports multiple waveforms, modulation, and sweep functions, with USB and LAN connectivity for remote control. Ideal for R&D, education, and industrial testing.

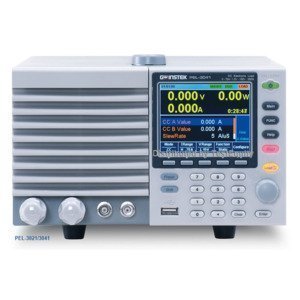

The Instek PEL-3041 DC Electronic Load delivers precise testing for power supplies and batteries with 150V, 70A, and 350W capacity. Featuring four load modes and high accuracy, it’s ideal for engineers seeking reliable performance.
The Instek GDS-2204E is a 4-channel digital storage oscilloscope with 200 MHz bandwidth, 10 Mpts memory depth, and 1 GS/s sampling rate. Ideal for electronic design, troubleshooting, and education, it features advanced triggering and a 7-inch TFT display.
The Instek GDS-2104E is a 4-channel digital storage oscilloscope with 100 MHz bandwidth, 1 GS/s sampling rate, and 10 Mpts memory depth. Ideal for design, troubleshooting, and education, it features advanced triggering and a 7-inch display.
