Instek GDS-2104E 4-Channel Digital Oscilloscope, 100 MHz, 1 GS/s

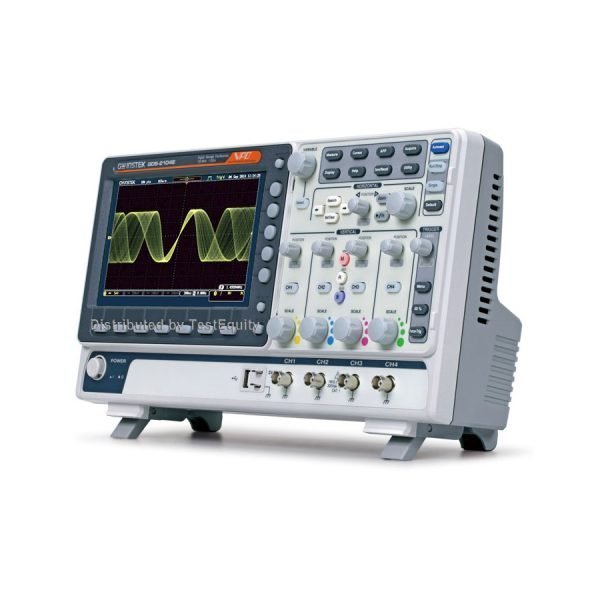

Instek GDS-2104E Digital Storage Oscilloscope

The Instek GDS-2104E is a high-performance 4-channel digital storage oscilloscope designed for engineers and technicians who demand precision and reliability. With 100 MHz bandwidth, 1 GS/s real-time sampling rate, and 10 Mpts memory depth per channel, this oscilloscope captures and analyzes complex signals with exceptional clarity. Its intuitive interface and advanced triggering capabilities make it a versatile tool for a wide range of applications.

Key Features & Highlights

• 4 Analog Input Channels: Simultaneously view and compare multiple signals for efficient troubleshooting.
• 100 MHz Bandwidth: Accurately capture high-frequency signals with minimal distortion.
• 1 GS/s Real-Time Sampling Rate: Ensure precise representation of fast transients and single-shot events.
• 10 Mpts Memory Depth per Channel: Record long signal sequences for detailed analysis of complex waveforms.
• 7-inch TFT LCD Display (800×480): Clear, high-resolution display with 256-level intensity grading for waveform visualization.
• Advanced Triggering: Edge, pulse width, and video triggering to isolate specific events.
• Built-in Function Generator: Output sine, square, triangle, and ramp waveforms for testing and educational purposes.
• Connectivity: USB, LAN, and GPIB interfaces for remote control and data transfer.

Applications

The GDS-2104E is ideal for electronic design validation, circuit debugging, power supply testing, and educational labs. Its deep memory and advanced triggering make it suitable for analyzing serial protocols, power integrity, and mechanical/electrical system interactions.
