Instek GDS-2204E Digital Storage Oscilloscope

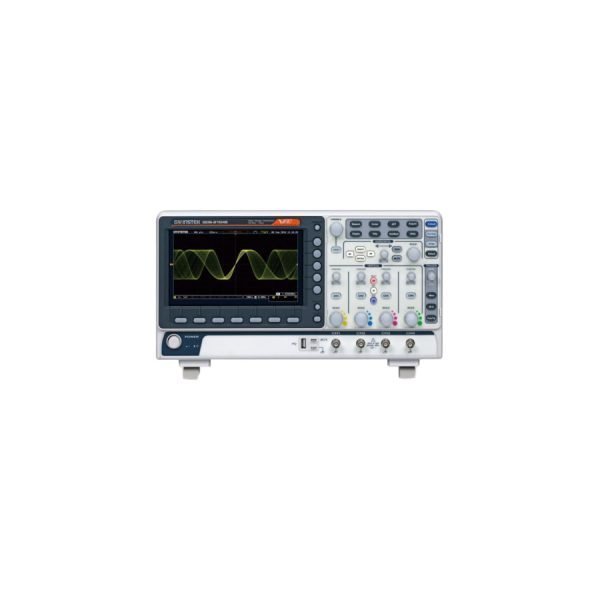

The Instek GDS-2204E is a high-performance 4-channel digital storage oscilloscope from the GDS-2000E series, offering 200 MHz bandwidth, 10 Mpts memory depth per channel, and 1 GS/s real-time sampling rate. This powerful instrument is designed for engineers, technicians, and educators who demand precise signal analysis and reliable performance in a wide range of applications.
Key Features & Highlights
- 4 Analog Input Channels: Capture and compare multiple signals simultaneously for efficient troubleshooting.
- 200 MHz Bandwidth: Accurately capture high-frequency signals with minimal distortion.
- 10 Mpts Memory Depth: Store and analyze long signal sequences for detailed waveform inspection.
- 1 GS/s Real-Time Sampling Rate: Ensure precise representation of fast transients and complex waveforms.
- 7-inch TFT LCD Display: High-resolution 800×480 display with 256-level intensity grading for clear waveform visualization.
- Advanced Triggering: Edge, pulse width, and video triggering capabilities to isolate specific events.
- Built-in Function Generator: Generate sine, square, triangle, and ramp waveforms for testing and educational purposes.
- Versatile Connectivity: USB, LAN, and GPIB interfaces for remote control and data transfer.
Applications
The GDS-2204E is ideal for electronic design, debugging, and validation, as well as for educational laboratories and industrial maintenance. Its deep memory and advanced triggering make it suitable for analyzing complex signals in embedded systems, power electronics, and communications.
