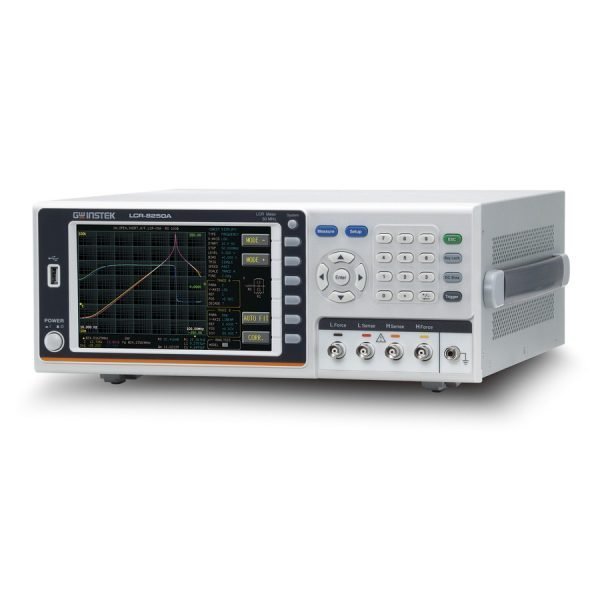

Instek LCR-8250A Precision LCR Meter
The Instek LCR-8250A is a high-performance LCR meter designed for precise measurement of inductance, capacitance, and resistance. With a frequency range of 10 Hz to 50 MHz and 6-digit resolution, it delivers exceptional accuracy and versatility for demanding applications in engineering, manufacturing, and research.
Key Features & Highlights
- Wide Frequency Range: 10 Hz to 50 MHz for testing a broad spectrum of components.
- High Resolution: 6-digit display ensures precise readings.
- Comprehensive Measurement Parameters: Measures L, C, R, D, Q, ESR, Z, and θ.
- Excellent Accuracy: Basic accuracy of 0.05% for reliable results.
- Flexible Test Signals: Sine, square, and triangle waveforms with levels from 5 mV to 2 V.
- Built-in Bias Voltage Source: Enables testing of biased components.
- Multiple Connectivity Options: USB, GPIB, LAN, and RS-232 interfaces for data transfer and remote control.
- Large Backlit LCD: Clear and convenient viewing in various lighting conditions.
Applications
The Instek LCR-8250A is ideal for component testing, quality control, and research and development. It is widely used in electronics manufacturing, educational laboratories, and service industries where precise impedance measurements are critical.
