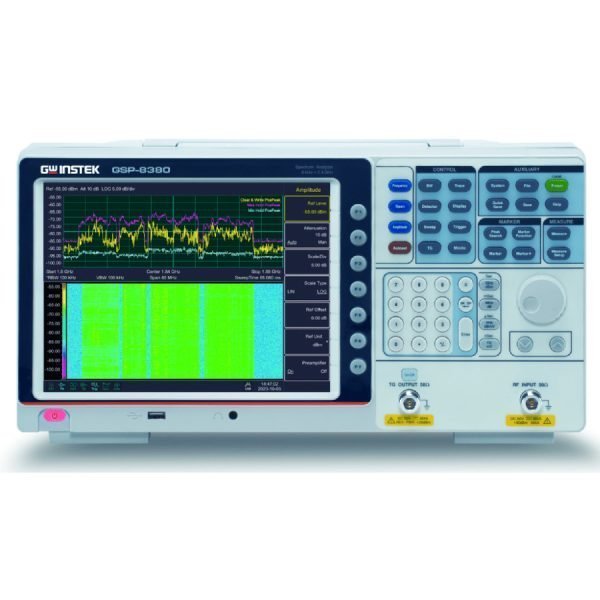

Instek GSP-8380 TG Benchtop Spectrum Analyzer with Tracking Generator
The Instek GSP-8380 TG is a professional benchtop spectrum analyzer designed for demanding signal analysis tasks. With a frequency range from 9 kHz to 3.8 GHz and a built-in tracking generator, this instrument provides comprehensive measurement capabilities for engineers and technicians. Its high dynamic range and low noise floor ensure accurate characterization of RF signals, while versatile display modes and advanced measurement functions make it a valuable tool for R&D, manufacturing, and field service.
Key Features & Highlights
- Wide Frequency Range: 9 kHz to 3.8 GHz for broad signal analysis.
- Built-in Tracking Generator: 100 kHz to 3.8 GHz for frequency response and gain/loss measurements.
- High Dynamic Range: >100 dB for detecting weak signals alongside strong ones.
- Low Phase Noise: <-100 dBc/Hz @ 10 kHz offset ensures accurate spectral purity measurements.
- Excellent DANL: <-160 dBm for measuring low-level signals.
- Multiple Display Modes: Spectrum, Waterfall, and Spectrogram for detailed signal visualization.
- Advanced Measurements: VSWR and distance-to-fault for antenna and cable testing.
- Flexible Connectivity: USB, LAN, and GPIB interfaces for remote control and data transfer.
Applications
The Instek GSP-8380 TG is ideal for a variety of applications, including:
- RF component testing and characterization
- Electromagnetic interference (EMI) pre-compliance testing
- Wireless communication system troubleshooting
- Antenna and cable installation and maintenance
- Education and research laboratories
With its robust feature set and reliable performance, the GSP-8380 TG is a versatile solution for professionals who require precise spectrum analysis and signal generation capabilities.
