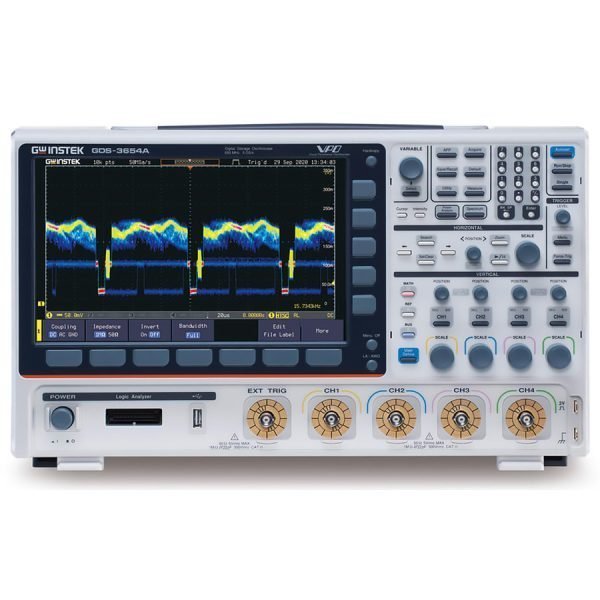

Instek GDS-3654A Mixed Signal Oscilloscope
The Instek GDS-3654A is a high-performance mixed signal oscilloscope designed for engineers and technicians who demand precision and reliability. With 4 analog channels, 650 MHz bandwidth, 5 GS/s sampling rate, and 200 Mpts memory depth, this instrument delivers exceptional signal capture and analysis capabilities for complex electronic systems.
Key Features & Highlights
- 4 Analog Channels with 650 MHz Bandwidth: Capture high-frequency signals with accuracy and detail.
- 5 GS/s Real-Time Sampling Rate: Ensure precise representation of fast transients and high-speed signals.
- 200 Mpts Memory Depth per Channel: Record long-duration events without compromising resolution.
- 12-Bit Vertical Resolution: Reveal fine signal details with enhanced amplitude accuracy.
- 10.1-Inch Capacitive Touchscreen: Intuitive interface for efficient operation and navigation.
- Built-In 16-Channel Logic Analyzer: Simultaneously analyze digital and analog signals for mixed-signal debugging.
- Advanced Triggering Capabilities: Edge, pulse width, and video triggering for precise signal isolation.
- Comprehensive Measurement Functions: Time, frequency, voltage, and power measurements for thorough analysis.
- USB, LAN, and GPIB Connectivity: Seamless data transfer and remote control integration.
Applications
The GDS-3654A is ideal for a wide range of applications, including electronic design and validation, embedded system debugging, power electronics testing, and research and development. Its combination of high bandwidth, deep memory, and mixed-signal capability makes it a versatile tool for troubleshooting complex circuits, analyzing high-speed serial buses, and verifying signal integrity.
Whether you are working in telecommunications, automotive, aerospace, or industrial electronics, the Instek GDS-3654A provides the performance and reliability you need to accelerate your projects and ensure product quality.
