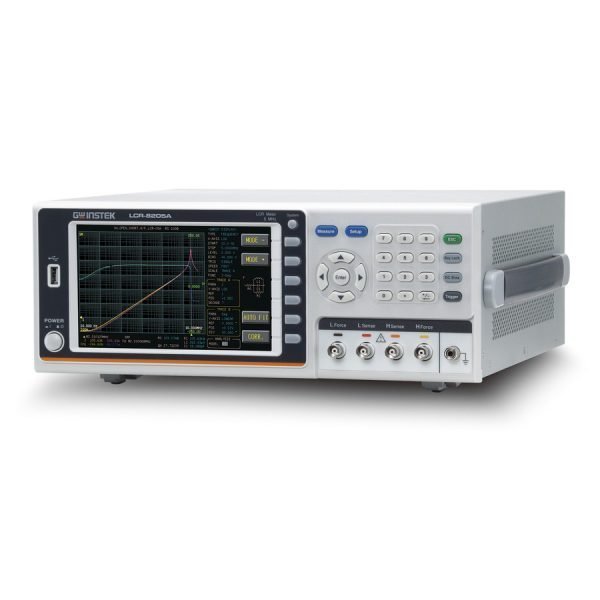

Instek LCR-8205A LCR & Impedance Meter

The Instek LCR-8205A LCR & Impedance Meter is part of the Instek range of test and measurement applications instruments, built for test and measurement applications in the field or laboratory. Highlights: lCR-8205A LCR Meter.

• Features and Specifications:
• Instek LCR-8205A LCR Meter Product Overview:
• Instek LCR-8205A LCR Meter is a high-performance instrument designed for precise measurement of inductance, capacitance, and resistance (LCR) components
• With its wide frequency range of 10 Hz to
• 5 MHz and 6-digit resolution, it offers exceptional accuracy and versatility for various applications
• Wide frequency range:
• 10 Hz to 5 MHz High accuracy:
• 0.05% basic accuracy 6-digit resolution Multiple measurement modes:
• L, C, R, Z, θ, D, Q Auto-ranging and auto-zero functions
• Built-in bias voltage and current sources USB, GPIB, LAN, and RS-232 interfaces for remote control and data logging
• Specifications:
• Measurement range:
• Inductance:
• 0.0001 mH to 1000 H Capacitance:
• 0.0001 pF to 100 mF Resistance:
• 0.0001 Ω to 100 MΩ Accuracy:
• Inductance:
• 0.05% Capacitance:
• 0.05% Resistance:
• 0.05% Resolution:
• 6 digits Frequency range:
• 10 Hz to 5 MHz Bias voltage:
• 0 to 5 V Bias current:
• 0 to 100 mA What’s in the Box:
• Instek LCR-8205A LCR Meter Test leads Calibration certificate User manual Benefits:
• High accuracy and resolution for precise measurements
• Wide frequency range for testing a variety of components
• Multiple measurement modes for comprehensive analysis
• Auto-ranging and auto-zero functions for ease of use
• Remote control and data logging capabilities for automation and data management
• Value to the Customer:
• The Instek LCR-8205A LCR Meter provides exceptional value to customers by offering:
• Accurate and reliable measurements for quality control and research
• Versatility for testing a wide range of components
• Time-saving features for efficient testing
• Connectivity options for seamless integration into test systems
