Power Analyzers
Power analyzers measure real, apparent and reactive power together with harmonics, power factor and efficiency, which a multimeter cannot do on a distorted or switching waveform.
Dranetz, Hioki, Keysight, Vitrek and Fluke cover this range. The distinction that matters most is between a portable power quality recorder, used to log events and harmonics on an installation over days, and a precision benchtop analyzer used to measure the efficiency of a converter or motor drive on the bench. The first prioritises event capture and standards-based reporting, the second prioritises basic accuracy and bandwidth. Tell us whether the work is a site survey or a design measurement.
Dranetz HDPQ XPLORER 500A Class A power quality analyzer with four voltage and four current channels, transient capture, remote connectivity, and Dranview 7 Pro software.
The Dranetz HDPQ GUIDE 10A is a portable power quality analyzer with 4 differential voltage and 4 current channels, offering Class A compliance and wireless connectivity. It captures all PQ parameters simultaneously, ideal for industrial and data center applications.
The Hioki PW3337-03 Power Analyzer offers 3-channel input for DC to 1 MHz measurements with 0.05% basic accuracy. Ideal for motor, inverter, and power supply testing, it features harmonic analysis and high-speed sampling.
The Dranetz HDPQ-SPX4AFLEX6KPKG is a high-performance power quality analyzer designed for industrial and commercial applications. It offers 1000V voltage measurement, 6000A current measurement, and 100kHz bandwidth, ensuring precise monitoring and analysis. Ideal for data centers and energy management, this analyzer provides comprehensive power quality assessment.
The Dranetz HDPQ-SPX4A550PKG is a high-performance power quality analyzer featuring 4 voltage and 4 current channels, high-speed transient capture, and comprehensive harmonic analysis. Ideal for engineers seeking precise power monitoring and energy efficiency optimization.
The Keysight Technologies V3500A is a compact handheld RF power meter offering accurate power measurements from 10 MHz to 6 GHz with a wide dynamic range of -63 dBm to 20 dBm. Its integrated power sensor and internal calibration reference ensure reliable field and manufacturing testing.

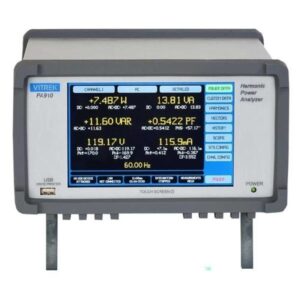

The Vitrek PA911VT is a high-precision power analyzer offering 0.045% accuracy, up to 500 harmonics at 400Hz, and a modular design supporting up to 4 channels. Ideal for avionics, power quality testing, and efficiency measurements, it features a touchscreen interface, built-in data logger, and multiple connectivity options.
The Hioki PW6001-15 Power Analyzer delivers high-precision power measurement with 5 channels, DC to 10 MHz bandwidth, and ±0.02% basic accuracy. Ideal for motor analysis and energy monitoring, it features 18-bit resolution and fast sampling for reliable industrial testing.
The Fluke 435-II is a Class-A compliant power quality analyzer that combines power analyzer, oscilloscope, recorder, and data logger in one rugged handheld. It measures all three phases and neutral, captures transients up to 6 kV, and includes four flexible current probes for tight spaces. Ideal for troubleshooting, commissioning, and energy loss analysis.
The Dranetz ENERGY PLATFORM EP1 30/300/3000A FLEX is a high-accuracy power quality analyzer with 8 channels (4 voltage, 4 current), 0.1% accuracy, and 256 samples/cycle. It features a color touchscreen, automatic setup, and includes EPRW software for energy audits, making it ideal for energy management and power quality troubleshooting.
The Dranetz HDPQ XPLORER400 10A is a Class A power quality analyzer with 4 voltage and 4 current channels, capturing high-speed transients and offering remote monitoring via Ethernet, Wi-Fi, and Bluetooth. Ideal for industrial and data center applications, it includes DranView 7 Pro software and a comprehensive accessory kit.
The Keysight Technologies E4413A is a high-performance power analyzer for RF and microwave testing, offering a frequency range of 50 MHz to 26.5 GHz (33 GHz with options) and a wide dynamic range of -70 dBm to 20 dBm. It delivers fast measurement speeds up to 400 readings per second, ensuring accurate and efficient signal analysis in aerospace, defense, and manufacturing applications.
