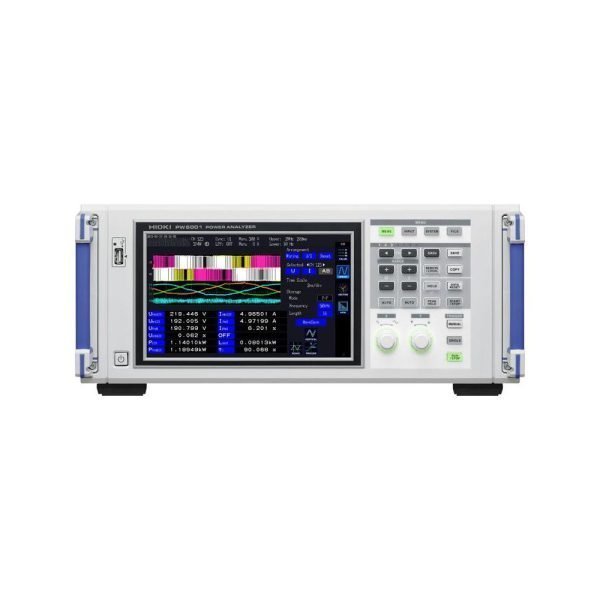

Hioki PW6001-15 Power Analyzer, 5-Channel, DC to 10 MHz

The Hioki PW6001-15 Power Analyzer is a high-performance instrument designed for precise power measurement in demanding industrial applications. With its wide frequency range from DC to 10 MHz and exceptional basic accuracy of ±0.02%, this 5-channel analyzer ensures reliable data for motor analysis, energy monitoring, and power quality assessments. Its advanced features, including 18-bit resolution and high noise resistance, make it a versatile tool for engineers and technicians.

Key Features & Highlights

• 5-Channel Measurement: Simultaneously measure voltage, current, power, and harmonics across multiple phases.
• High Accuracy: Basic accuracy of ±0.02% for power measurement (PW6001 accuracy only; ±0.07% with current sensor).
• Wide Bandwidth: DC to 10 MHz frequency range for capturing high-speed signals.
• Fast Sampling: Up to 10 MS/s sampling rate and 10 ms data refresh while maintaining maximum accuracy.
• Advanced Motor Analysis: Special triggers enable waveform and motor analysis without an oscilloscope.
• High Noise Immunity: 80 dB/100 kHz CMRR and ±0.01%/°C temperature characteristics ensure stable measurements.
• Wideband Harmonic Analysis: Analyze up to the 100th harmonic with a 1.5 MHz band.
• Expandable Channels: Synchronize two units via optical connection (up to 500 m) for up to 12 channels in real time.
• D/A Output: Analog output for integration with external monitoring systems.

Applications

This power analyzer is ideal for evaluating motor efficiency, inverter testing, power supply characterization, and energy management systems. Its high accuracy and fast response make it suitable for R&D, production testing, and field maintenance in industries such as automotive, electronics, and renewable energy.
