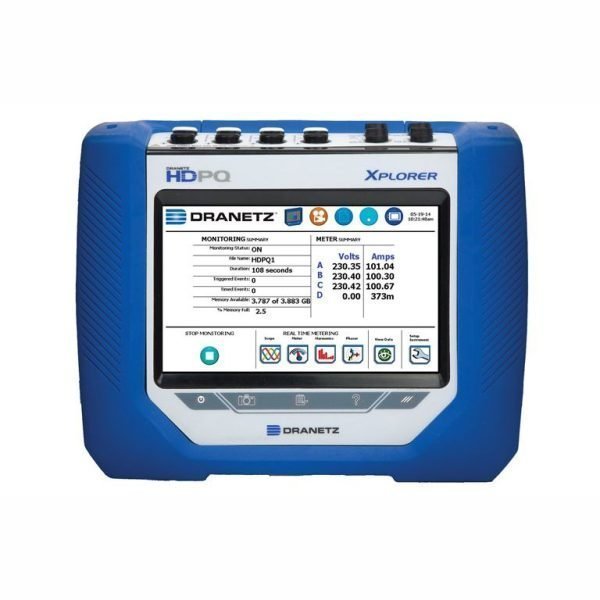

The Dranetz HDPQ XPLORER 500A is a Class A power quality analyzer for detailed assessment of electrical systems. Four differential voltage channels and four current channels work with transient capture, event recording, and standards-based reporting to help locate and diagnose power quality problems.
Key specifications
- Four differential 50/60 Hz AC/DC voltage channels
- Four AC/DC current channels with flex probe power
- High-speed transient capture and 10,000-cycle recording buffer
- 7-inch color touchscreen with Apple and Android apps
- Ethernet, 802.11 wireless, Bluetooth, and USB connectivity
- 4 GB internal flash memory plus external USB storage
- Compliance with IEC 61000-4-30 Class A, EN50160, IEEE 1159, 519, 1453, and 1459
- Includes Dranview 7 Pro PC software and voltage/current cable sets
Recommended applications
Use it for power-quality troubleshooting, harmonics and energy analysis, load profiling, power-factor work, and monitoring in industrial, commercial, utility, and facility environments.
