Overview

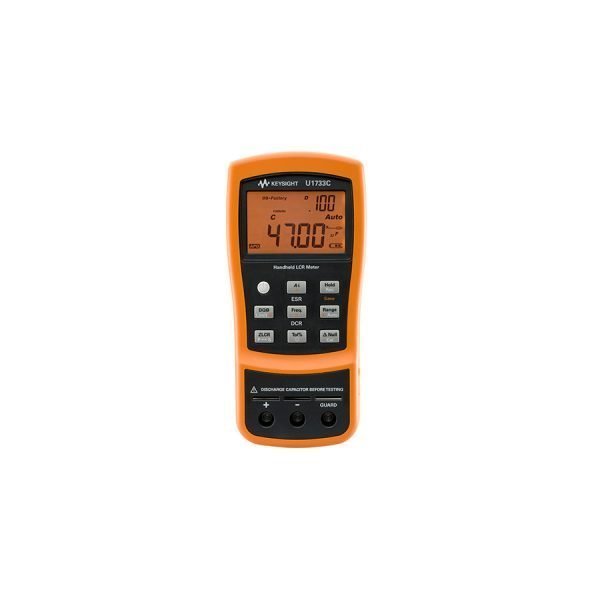

The Keysight U1733P Handheld LCR Meter Combo Kit is a portable solution for inductance, capacitance, and resistance measurement. The kit combines the U1733C LCR Meter with leads, clips, SMD tweezers, and a carrying case.
Applications and Selection
Select this combo kit for field service, production testing, or component characterization when a broad LCR range and flexible test modes are needed. The built-in signal generator and data interfaces support varied measurement workflows.
Technical Information
- Inductance: 0.1 μH to 100 H
- Capacitance: 0.1 pF to 100 mF
- Resistance: 0.1 mΩ to 100 MΩ
- Accuracy up to 0.1%; resolution up to 0.01%
- Modes: basic LCR, ESR, DCR, and Q
- Test signal generator: 10 Hz to 100 kHz
- Stores up to 1000 measurements
- USB and RS-232 interfaces
- Includes 1753A test leads, 1754A Kelvin clips, 1755A alligator clips, and 1756A SMD tweezers
Request a Quotation
Contact Indomultimeter for a quotation on the Keysight U1733P Handheld LCR Meter Combo Kit and confirm accessory and interface needs.
