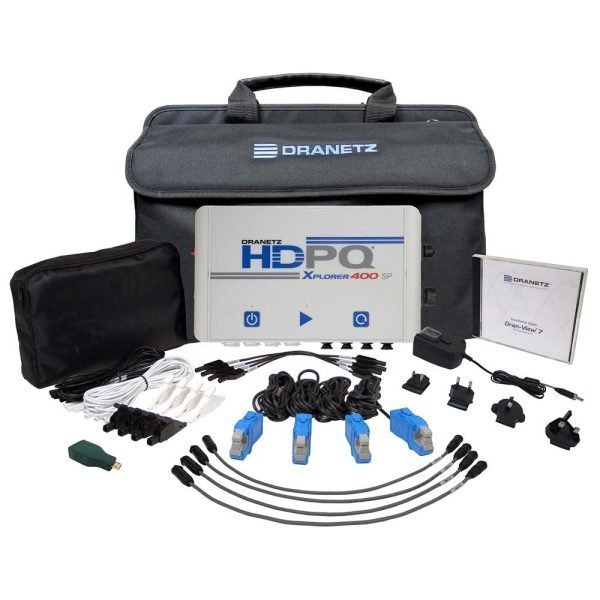

Dranetz HDPQ-SPX4A550PKG Power Quality Analyzer
The Dranetz HDPQ-SPX4A550PKG is a top-tier power quality analyzer from the renowned HDPQ Xplorer family, designed for professionals who demand the highest level of accuracy and reliability in power monitoring. With its advanced capabilities, this instrument is perfect for comprehensive power quality surveys, energy management, and troubleshooting in industrial, commercial, and utility settings.
Key Features & Highlights
- High-Definition Monitoring: 1000Vrms AC/DC, 512 samples/cycle, and high-speed transient capture up to 1 microsecond (10-2000Vpk) ensure no event goes unnoticed.
- 8 Channels: 4 voltage and 4 current inputs provide complete three-phase monitoring with neutral.
- Advanced Compliance: Meets IEC 61000-4-30 Class A, IEEE 1159, IEC 61000-4-7, and IEEE 519 (2014) standards for harmonics and power quality.
- AnswerModules: Automatic event categorization for sag directivity, PF capacitor identification, and motor analysis.
- Comprehensive Communications: Ethernet, Wi-Fi, USB, Bluetooth, and VNC for remote control via Dran-View 7 or third-party apps.
- Rugged & Safe: IP65 enclosure for harsh environments, UL/cUL listed, CE approved, and arc flash safety rated.
- User-Friendly Interface: Tablet-like GUI with icon-driven navigation, taskbar shortcuts, and real-time dashboards.
- Productivity Tools: Mini-reports, screen snapshots, and XML file export for easy sharing.
Applications
- Power quality surveys and diagnostics
- 400Hz naval, aviation, and military power systems
- Motor testing and diagnosis
- Transient and fault recording
- Inrush testing for transformers and motors
- Energy management and load surveys
- Harmonic analysis and advanced load distortion
- Alternative energy production (solar, wind) – panel strings, batteries, inverters, grid interconnect
- Compliance testing and flicker testing
- Outdoor and harsh environment monitoring
