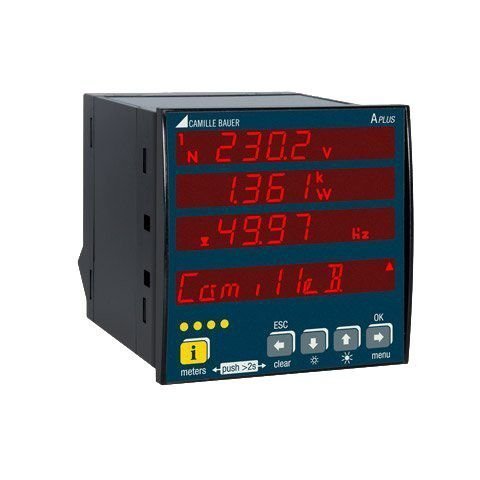

The Dranetz APLUS5AE is a multifunction power monitor designed for comprehensive power quality analysis in industrial and commercial settings. With its LED display and advanced measurement capabilities, it provides accurate voltage and current harmonics analysis up to the 50th order, enabling engineers to identify and resolve power quality issues effectively. The device supports Ethernet Modbus TCP for seamless integration into existing monitoring systems, and includes 1 relay output, 1 digital input, and 1 digital output for control and alarm functions. Its nominal input voltage ranges from 24-230 VDC and 100-230 VAC, making it versatile for various installations. The compact 1/4 DIN size (96 x 96 mm panel cutout) ensures easy mounting in standard panels.
Key Features & Highlights
- Multifunction power monitor with LED display for real-time data visualization
- Voltage and current harmonics analysis to the 50th harmonic
- Ethernet Modbus TCP communication for remote monitoring and integration
- 1 relay output, 1 digital input, and 1 digital output for control and alarm
- Wide input voltage range: 24-230 VDC, 100-230 VAC
- Compact 1/4 DIN size (96 x 96 mm panel cutout) for easy installation
Applications
The Dranetz APLUS5AE is ideal for power quality monitoring in industrial facilities, commercial buildings, and utility substations. It is well-suited for energy management, harmonic analysis, power factor measurement, and voltage monitoring applications. Its robust design and communication capabilities make it a reliable choice for continuous monitoring and troubleshooting of electrical systems.
