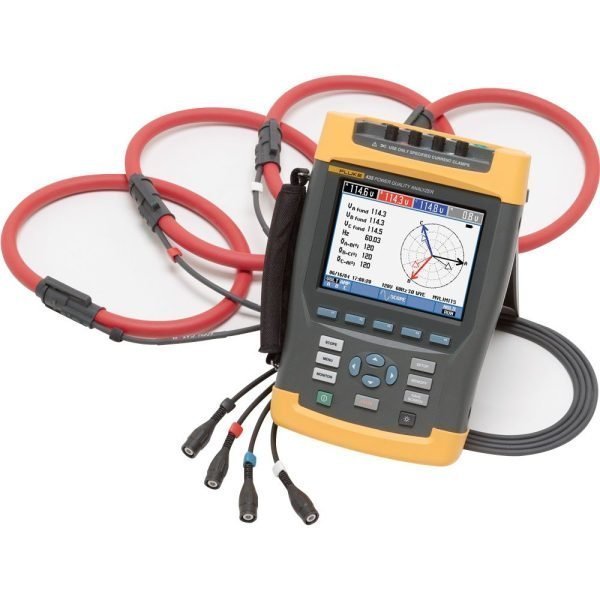

Fluke 435-II Power Quality Analyzer with 4 Flexible Current Probes

Fluke 435-II Power Quality Analyzer

The Fluke 435-II is the industry’s most advanced handheld power quality analyzer, designed for professionals who demand precision and reliability in electrical system troubleshooting, commissioning, and maintenance. This Class-A compliant instrument (per IEC 61000-4-30) combines the functionality of a power analyzer, oscilloscope, recorder, and data logger into one compact, rugged device. With the ability to measure all three phases and neutral simultaneously, the 435-II provides a complete picture of your electrical system’s health.

Key Features & Highlights

• Class-A Compliance: Meets the stringent international IEC 61000-4-30 Class-A standard for accurate and repeatable power quality measurements.
• Energy Loss Calculator: Quantifies active and reactive power losses, unbalance, and harmonic power to pinpoint true system energy losses in dollars or local currency.
• Power Inverter Efficiency: Measures AC output and DC input power simultaneously using optional DC clamps for power electronics systems.
• PowerWave Data Capture: Captures fast RMS data, half-cycle, and waveforms to characterize electrical system dynamics such as generator start-ups and UPS switching.
• Waveform Capture: Records 100/120 cycles (50/60 Hz) of each detected event in all modes without setup.
• Automatic Transient Mode: Captures 200 kHz waveform data on all phases simultaneously up to 6 kV.
• Mains Signaling: Measures interference from ripple control signals at specific frequencies.
• 400 Hz Measurement: (437 Series II) For avionic and military power systems.
• Automatic Trending: Every measurement is automatically recorded without setup.
• System-Monitor: Displays ten power quality parameters on one screen according to EN50160 standard.
• Logger Function: Configure for any test condition with memory for up to 600 parameters at user-defined intervals.
• Highest Safety Rating: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.
• Included Accessories: Four flexible current probes (i430flex-TF, 24-inch), TL430 test leads, alligator clips, color coding set, 8 GB SD card, PowerLog software, USB cable, and soft carrying case.

Applications

The Fluke 435-II is essential for electrical engineers, facility managers, and maintenance professionals who need to ensure power quality, optimize energy efficiency, and prevent downtime. Ideal for industrial plants, commercial buildings, data centers, and utility applications, this analyzer helps you troubleshoot power issues, verify compliance with standards, and identify energy-saving opportunities.
