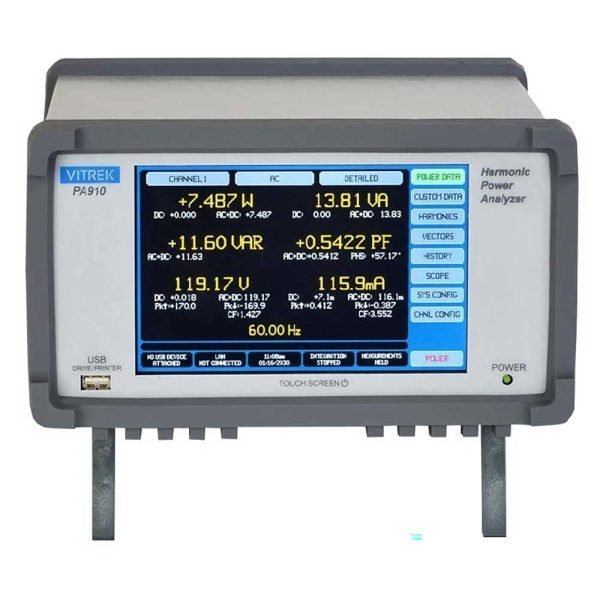

Vitrek PA911VT Power Analyzer

The Vitrek PA911VT is a state-of-the-art power analyzer designed for demanding industrial and avionics applications. With high precision accuracy of 0.045% and the ability to analyze up to 500 harmonics at 400Hz, it meets stringent Airbus avionics harmonics measurement criteria. Its modular architecture allows you to configure up to 4 power measurement channels using any combination of 3 different channel card types, providing flexibility for a wide range of testing scenarios.

Key Features & Highlights

• High Precision Accuracy: 0.045% accuracy ensures reliable measurements for critical applications.
• Advanced Harmonic Analysis: Up to 500 harmonics at 400Hz, compliant with Airbus avionics standards.
• Large Touchscreen Display: High-resolution color display with an intuitive touchscreen interface for easy navigation and data visualization.
• Modular Design: Choose up to 4 channel cards from 3 types (S, W, A) to tailor the analyzer to your needs.
• Built-in Data Logger: Log up to 16 selectable data results to USB or internal storage, with intervals from 10ms to 100 hours and optional time/date stamps.
• Multiple Measurement Views: Power Data, Custom Power Data, Scope View, Cycle View, Vector Screen, and History Screen for comprehensive analysis.
• Standby Power Screen: Test per EN50564:2011 with a dedicated application screen.
• Virtual Power Analyzers (VPAs): Configure up to 3 VPAs for three-phase measurements or efficiency tests, with grouping for IN, MIDDLE, and OUT efficiency.
• Connectivity: Ethernet, high-speed serial, USB (client), and optional multi-unit connection for expanding channel count.
• CE Mark Certified: Compliant with EN61010, with a 2-year warranty and calibration cycle.

Applications

The Vitrek PA911VT is ideal for power quality analysis, avionics testing, motor and drive efficiency measurements, and standby power testing. Its versatility and precision make it suitable for R&D labs, manufacturing test floors, and certification bodies.
