Overview

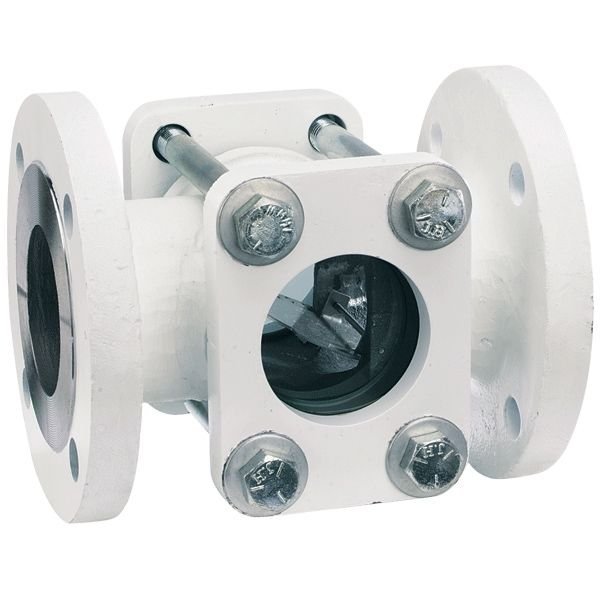

The Dwyer Instruments SFI-350FCS-2 Flowmeter is a Series 300F sight flow indicator for visual flow observation. Its double viewing windows and removable window design support practical inspection and service.
Applications and Selection
Choose this model for installations requiring ANSI flange process connections and a 2-inch sight flow indicator body. The 350F type uses a double window with no moving indicator; Series 300F options are available with carbon steel or 316 stainless steel bodies.
Technical Information
- Series: 300F Sight Flow
- Type: 350F, double window with no moving indicator
- Body length: 6.500 in (165 mm)
- Flange diameter: 6.000 in (152 mm)
- Viewing diameter: 2.313 in (58 mm)
- Removable window for service and wearing-part replacement
Request a Quotation
Contact Indomultimeter for a quotation on the Dwyer Instruments SFI-350FCS-2 Flowmeter and confirm connection and body requirements.
