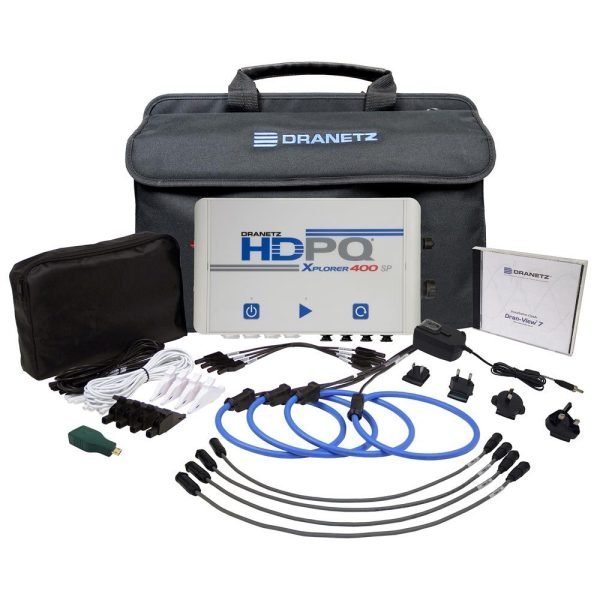

The Dranetz HDPQ-SPX4AFLEX6KPKG is a top-tier power quality analyzer from the HDPQ Xplorer family, delivering exceptional accuracy and versatility for demanding power quality monitoring. With 1000Vrms AC/DC voltage measurement, 6000A current capability, and a 100kHz bandwidth, this instrument captures high-speed transients and detailed waveform data, ensuring you never miss an event.
Key Features & Highlights
- High Definition PQ & Energy Monitoring: 1000Vrms, AC/DC, 512 samples/cycle
- High Speed Digitized Transients to 1us – 10 to 2000Vpk
- Eight channels: 4 voltage & 4 current
- AnswerModules for automatic event categorization (Sag directivity, PF capacitor identification, motor)
- Advanced PQ compliance: IEC 61000-4-30 Class A, IEEE 1159, IEC 61000-4-7, IEEE 519 (2014)
- Transient capabilities with waveshape triggers
- IEEE 1459 advanced power measurements
- 10,000 cycle pre/post trigger buffer
- EN 50160 Ed 3 compliance
- Communications: Ethernet, Wi-Fi, USB, Bluetooth, VNC remote control
- Apple & Android apps for real-time metering and alarms
- Safe & Rugged: UL/cUL listed, CE approved, IP65 enclosure
- Automatic circuit detection and connection feedback
- User-friendly interface with automatic setups, tablet-like GUI, and dashboards
- Mini-report and screen snapshots for easy sharing
- Dran-View 7 software with Rescue Kit and post-processing capabilities
Applications
- Power quality surveys and diagnostics
- 400Hz naval, aviation, and military power systems
- Motor testing and fault recording
- Transient and inrush current testing
- Energy management and load surveys
- Harmonic analysis and advanced load distortion
- Alternative energy production (solar, wind) monitoring
- Compliance and flicker testing
- Outdoor and harsh environment monitoring with IP65 rating
