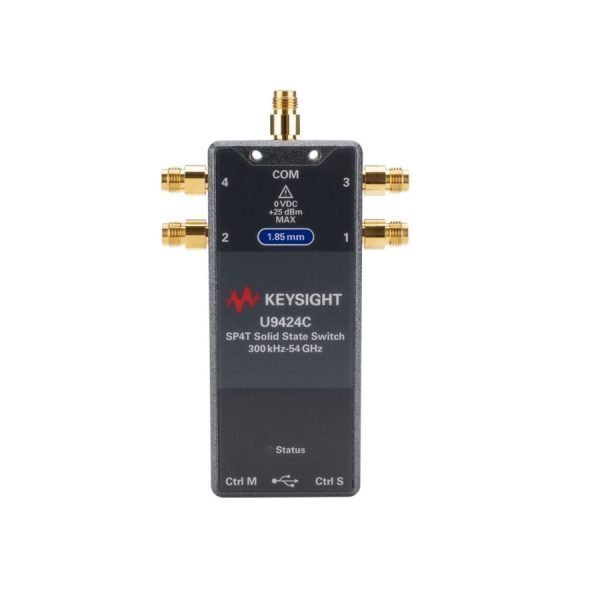

Keysight U9424C Solid State FET Switch, SP4T, 300 kHz-54 GHz

Keysight U9424C/001/101 Solid State FET Switch

The Keysight U9424C/001/101 is a high-performance solid state FET switch designed for demanding RF applications. Operating over a wide frequency range of 300 kHz to 54 GHz, this SP4T switch delivers exceptional signal integrity with low insertion loss and high isolation, making it a reliable choice for test and measurement, communications, and radar systems.

Key Features & Highlights

• Frequency Range: 300 kHz to 54 GHz
• Configuration: SP4T (Single Pole, Four Throw)
• Insertion Loss: <1.5 dB typical
• Isolation: >60 dB typical
• Switching Speed: <10 ns
• Termination: Solder wire for easy PCB integration
• Series Compatibility: U942xA/B/C Series

Applications

This switch is ideal for use in RF test setups, signal routing, and switching matrices where high performance and reliability are critical. It is suitable for applications in aerospace, defense, telecommunications, and general-purpose RF testing.
