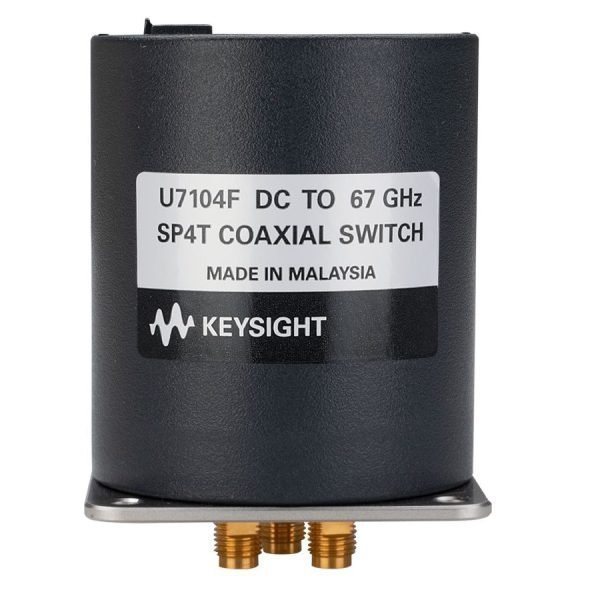

Keysight U7104F/200 Electromechanical Switch, SP4T, DC-67 GHz

Keysight U7104F/200 Electromechanical Switch

The Keysight U7104F/200 is a high-performance electromechanical switch engineered for demanding RF applications across aerospace, defense, and telecommunications. With its SP4T configuration and DC to 67 GHz frequency range, this switch provides reliable signal routing with minimal insertion loss and excellent isolation, ensuring accurate measurements and robust system performance.

Key Features & Highlights

• Frequency Range: DC to 67 GHz, covering a wide spectrum for diverse RF testing needs.
• SP4T Configuration: Single-pole, four-throw switching for flexible signal routing.
• Exceptional Performance: Low insertion loss (<1.5 dB typical) and high isolation (>60 dB typical) for signal integrity.
• High Power Handling: Supports up to 200 W (CW) for high-power applications.
• Fast Switching: Switching speed of <100 ns for efficient test sequences.
• Terminated Design: 50-ohm termination ensures proper impedance matching.
• Easy Integration: TTL/CMOS compatible control interface simplifies system integration.
• Rugged Construction: Operating temperature range of -55°C to +85°C for reliability in harsh environments.

Applications

The Keysight U7104F/200 is ideal for use in radar systems, electronic warfare, satellite communications, and high-frequency test setups where precision and reliability are critical. Its wide bandwidth and high power handling make it a versatile choice for both R&D and production test environments.
