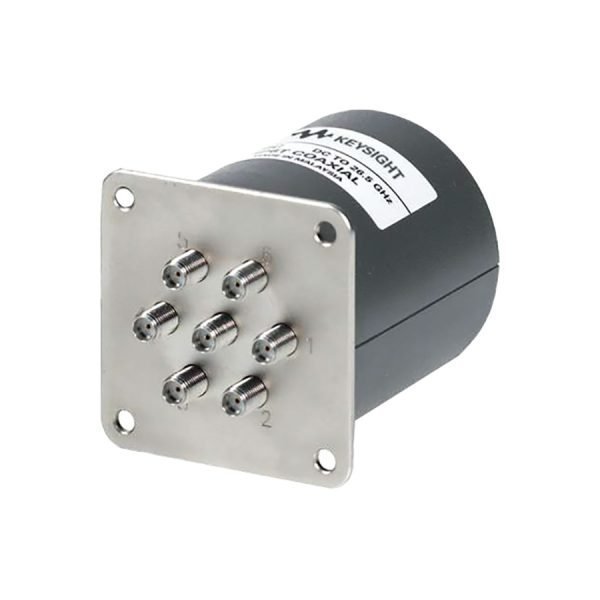

The Keysight L7106C RF Switch (model L7106C/161/T24/SMA) is a high-performance multiport coaxial switch designed for demanding RF test and measurement applications. Operating from DC to 26.5 GHz, this SP6T switch delivers fast switching, low insertion loss, and high isolation, making it a reliable choice for signal routing in automated test equipment and microwave systems.
Key Features & Highlights
- Frequency range: DC to 26.5 GHz
- SP6T (single-pole, six-throw) configuration
- Low insertion loss: <0.5 dB (typical)
- High isolation: >60 dB (typical)
- Fast switching speed: <100 ns
- TTL logic control
- 24 VDC power supply
- Multiport design for flexible signal routing
Applications
This switch is ideal for use in test and measurement systems, signal routing and switching, antenna selection, and microwave/millimeter-wave applications. Its robust performance and ease of integration make it a valuable component for engineers and system designers.
