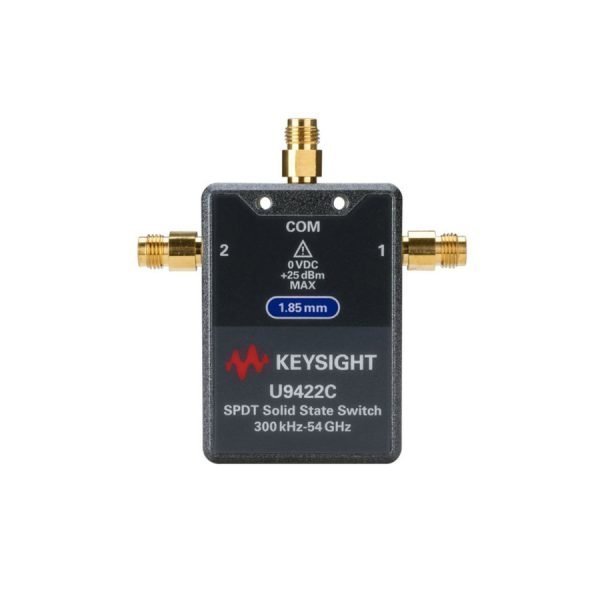

The Keysight U9422C/002/201/301 Solid State FET Switch is a high-performance, broadband switch from the U942xA/B/C Series, designed for demanding RF test and measurement applications. With a frequency range of 300 kHz to 54 GHz, this SPDT switch delivers fast switching speeds, low insertion loss, and high isolation, making it an essential component for automated test systems and signal routing.
Key Features & Highlights
- Broadband Performance: Operates from 300 kHz to 54 GHz, covering a wide range of RF and microwave frequencies.
- SPDT Configuration: Single-pole, double-throw switch ideal for signal routing and switching between two paths.
- Fast Switching Speed: <100 ns switching time ensures minimal signal distortion in high-speed applications.
- Low Insertion Loss: Typical insertion loss of <1.5 dB maintains signal integrity.
- High Isolation: >50 dB isolation prevents signal leakage between ports.
- USB Control: Convenient USB interface allows easy integration and control via PC or automated test systems.
- Compatibility: Part of the U942xA/B/C Series, ensuring seamless integration with other Keysight products.
Applications
The Keysight U9422C/002/201/301 is ideal for use in test and measurement setups, communication systems, and aerospace applications where reliable, high-speed switching is critical. It is particularly suited for automated test equipment (ATE), signal routing in production test, and R&D environments requiring precise and repeatable switching performance.
