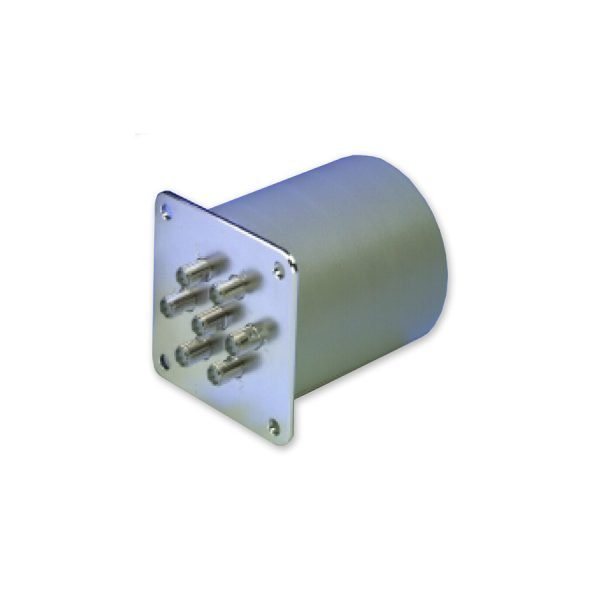

Keysight 87206C/100/SMA Multiport Coaxial Switch
The Keysight 87206C/100/SMA is a precision SP6T multiport coaxial switch engineered for high-frequency applications up to 26.5 GHz. Designed for exceptional signal integrity, this switch delivers low insertion loss and high isolation, making it an essential component for advanced RF and microwave test setups.
Key Features & Highlights
- Frequency Range: DC to 26.5 GHz, covering a wide spectrum for versatile testing.
- SP6T Configuration: Six-port single-pole, six-throw switching for complex signal routing.
- SMA(f) Connectors: Precision SMA female connectors ensure reliable, high-frequency performance.
- Solder Terminations: Facilitate secure and stable connections in permanent installations.
- Fast Switching Speed: <100 ns switching time for rapid signal routing in automated test systems.
- Low Insertion Loss: <0.5 dB typical, preserving signal strength and accuracy.
- High Isolation: >60 dB typical, minimizing crosstalk and interference.
- Rugged Construction: Built to withstand demanding industrial environments.
Applications
The Keysight 87206C/100/SMA is ideal for use in test and measurement systems, signal routing and switching, antenna switching, microwave component testing, and aerospace and defense applications. Its combination of wide bandwidth, fast switching, and reliable performance makes it a valuable asset for engineers and technicians requiring precise signal control.
