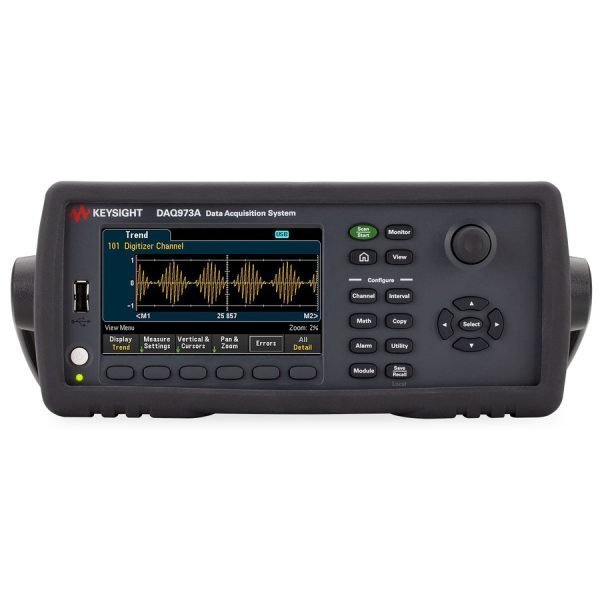

The Keysight DAQ973MB is a data acquisition bundle built around the DAQ973A mainframe with three DAQM901A 20-channel multiplexers. It combines high-speed acquisition, 24-bit resolution, signal conditioning, and USB, LAN, and GPIB connectivity for automated test and measurement.
Key specifications
- Includes DAQ973A mainframe and three DAQM901A 20-channel multiplexers
- 20 single-ended or 10 differential input channels per DAQM901A module
- Up to 1 MS/s sampling rate
- 24-bit resolution
- DAQ973A interfaces: USB, LAN, and GPIB
- 16 analog input channels and 8 digital input/output channels
- Includes USB, LAN, and GPIB cables, power cord, and software CD
Recommended applications
Use the DAQ973MB for automated measurement, high-speed data logging, signal conditioning, and expandable test-system integration.
