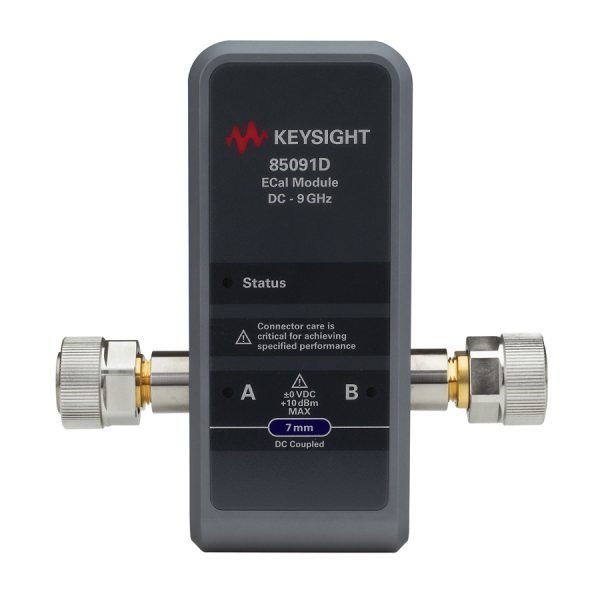

Keysight 85091D/0DC RF Ecal Module, DC-9 GHz, 7 mm, 8509xD Series

Keysight 85091D/0DC RF Ecal Module, DC-9 GHz, 7 mm, 8509xD Series is a precision RF calibration module for engineers and technicians who need dependable reference performance during analyzer and network-measurement work.

Product overview

This Keysight RF Ecal module covers DC to 9 GHz and uses a 7 mm connector for stable, repeatable connections. Its typical accuracy of ±0.05 dB, repeatability of ±0.02 dB, and temperature stability of ±0.005 dB/°C support consistent calibration results across demanding test environments. It is designed for compatibility with Keysight 8509xD Series RF Ecal analyzers.

Applications and selection

Use the 85091D/0DC for calibrating vector network analyzers and related RF test equipment in research, development, production, component characterization, material measurement, and quality-control applications. Before ordering, confirm the DC-to-9-GHz frequency requirement, 7 mm interface, expected accuracy and repeatability, temperature conditions, and compatibility with the intended 8509xD Series analyzer.

Technical information

• Model: Keysight 85091D/0DC
• Function: RF Ecal calibration module
• Frequency range: DC to 9 GHz
• Connector: 7 mm
• Typical accuracy: ±0.05 dB
• Typical repeatability: ±0.02 dB
• Typical temperature stability: ±0.005 dB/°C
• Compatibility: Keysight 8509xD Series RF Ecal analyzers

Request a quotation

Contact Indo Multimeter for pricing, availability, delivery information, and technical assistance selecting the Keysight 85091D/0DC for your RF calibration setup.
