Siglent Y504MS Mechanical Calibration Kit, DC-9 GHz, N-Type (m)

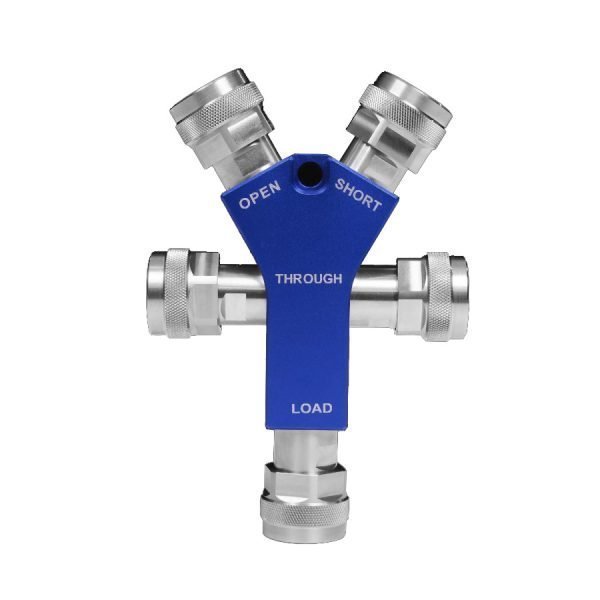

Siglent Y504MS Integrated Mechanical Calibration Kit

The Siglent Y504MS is a precision mechanical calibration kit designed to ensure accurate and reliable vector network analyzer (VNA) measurements across the DC to 9 GHz frequency range. Featuring N-Type (m) connectors and comprehensive OSLT (Open, Short, Load, Through) standards, this kit delivers exceptional measurement integrity for demanding RF and microwave applications.

Key Features & Highlights

• Frequency Range: DC – 9 GHz, covering a wide spectrum for versatile testing.
• Connector Type: N-Type (m) for robust, low-loss connections.
• Calibration Standards: Includes Open, Short, Load, and Through (OSLT) standards for full two-port calibration.
• High Accuracy: Typical accuracy of ±0.05 dB ensures precise measurements.
• Excellent Repeatability: Typical repeatability of ±0.02 dB minimizes measurement variability.
• Durable Construction: Rugged design withstands demanding industrial environments.
• Compact & Portable: Easy to transport and store, ideal for field and lab use.

Applications

The Siglent Y504MS is essential for engineers and technicians working with VNAs in telecommunications, aerospace, defense, and research laboratories. It is ideal for calibrating VNAs used in component testing, antenna characterization, material measurement, and production testing, ensuring reliable and traceable results.
