Analyzer Calibration Modules & Kits

Analyzer calibration modules and kits establish a known reference plane for vector network analyzer and spectrum analyzer measurements, removing the effect of cables, adapters and connectors from the result.

Keysight, Maury Microwave, Siglent, Anritsu and Rohde & Schwarz cover this range. Kits divide into mechanical standards, where open, short, load and through elements are connected in sequence, and electronic calibration modules that switch those states internally and complete the routine in one connection. Electronic modules are faster and reduce connector wear, which matters where calibration is frequent. The deciding specifications are frequency coverage and connector interface, and both must match your analyzer and your device under test exactly.

Price

Brands here

Keysight30 Maury Microwave9 Siglent6 Anritsu1 Rohde & Schwarz1 Pico Technology1

Keysight 85091D/0DC RF Ecal Module, DC-9 GHz, 7 mm, 8509xD Series

The Keysight 85091D/0DC RF Ecal Module provides DC-to-9-GHz calibration through a 7 mm connector, with typical ±0.05 dB accuracy and ±0.02 dB repeatability for compatible 8509xD Series RF Ecal analyzers. Request a quotation from Indo Multimeter.

$8,004.00

Keysight 85521A Mechanical Calibration Kit, OSLT, DC to 26.5 GHz, 3.5mm(f), 8522xA Series

Keysight 85521A 3.5 mm female mechanical calibration kit for 8522xA Series VNAs, providing OSLT standards from DC to 26.5 GHz in a traceable four-in-one set.

$2,727.00

Keysight N4691D/F0F Electronic Calibration Module, DC to 26.5 GHz, 3.5mm(f/f), 2-Port

Keysight N4691D/F0F two-port electronic calibration module for DC to 26.5 GHz VNAs, with 3.5 mm f/f connectors and Open, Short, Load, and Through calibration.

$15,807.00

Keysight N9910X/801 Mechanical T-Cal Kit, 3-in-1 OSL, DC-6 GHz, Type-N(f)

The Keysight N9910X/801 Mechanical T-Calibration Kit provides a 3-in-1 open, short, load (OSL) solution for vector network analyzers. Covering DC to 6 GHz with Type-N(f) connectors, it ensures accurate, repeatable measurements in a rugged design.

$772.00

Keysight N7552A/3MM ECal Module, DC-9 GHz, 2-Port

The Keysight N7552A/3MM Electronic Calibration Module (ECal) delivers precise, repeatable calibration for vector network analyzers from DC to 9 GHz. With its 2-port design and N-type connectors, this compact module simplifies calibration, improves measurement accuracy, and saves valuable test time.

$2,968.00

Keysight 85053B Verification Kit, 300kHz-26.5 GHz, 7.5cm Airline, 20/40dB Attenuator

The Keysight 85053B Verification Kit ensures precise calibration for vector network analyzers in the 300kHz to 26.5 GHz range. Includes a 7.5cm airline and 20/40dB attenuator for accurate high-frequency measurements. Compatible with 8505xx series.

$8,658.00

Siglent F504FS VNA Calibration Kit, OSLT, DC-9GHz, N-Female

The Siglent F504FS VNA Calibration Kit provides precision OSLT calibration for vector network analyzers from DC to 9 GHz. With N-female connectors and high-quality components, it ensures accurate, repeatable measurements for RF and microwave testing.

$941.00

Anritsu TOSLN50A-18 Coaxial Calibration Kit, Type N(m), DC to 18 GHz, 50 Ohm

The Anritsu TOSLN50A-18 Coaxial Calibration Kit provides precise calibration for Type N(m) connectors from DC to 18 GHz with 50 Ohm impedance. Includes open, short, load, and through standards for accurate RF and microwave measurements.

$1,520.00

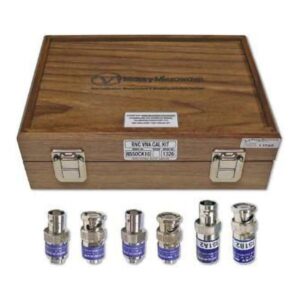

Maury Microwave 8550CK10 BNC VNA Calibration Kit, DC-10 GHz, 50 Ohm

The Maury Microwave 8550CK10 BNC VNA Calibration Kit provides precise calibration for vector network analyzers from DC to 10 GHz. This 50 Ohm kit includes open, short, load, and through standards with NIST-traceable data, ensuring accurate and repeatable measurements.

$3,112.00

Keysight N7554A/3MF Electronic Calibration Module, DC-18 GHz, 2-Port

The Keysight N7554A/3MF Electronic Calibration Module (ECal) delivers precise, repeatable calibration for vector network analyzers from DC to 18 GHz. This 2-port module enhances measurement accuracy, improves efficiency, and reduces downtime, making it an essential tool for RF and microwave testing.

$4,855.00

Maury Microwave 8850CK60 VNA Verification Kit, 18 GHz, Type N, 2-Port

The Maury Microwave 8850CK60 VNA Verification Kit is a comprehensive 2-port calibration set for Vector Network Analyzers up to 18 GHz. It includes load, short, beaded, and mismatch standards to ensure accurate and reliable measurements. Ideal for engineers and technicians seeking to verify VNA performance.

$6,394.00

Maury Microwave 7950CK51 VNA Calibration Kit, 50 GHz, 2.4 mm

The Maury Microwave 7950CK51 VNA Calibration Kit ensures precise 50 GHz measurements with 2.4 mm connectors. Includes open, short, load, and through standards for accurate, repeatable VNA calibration. Ideal for demanding RF and microwave testing applications.

$9,842.00
