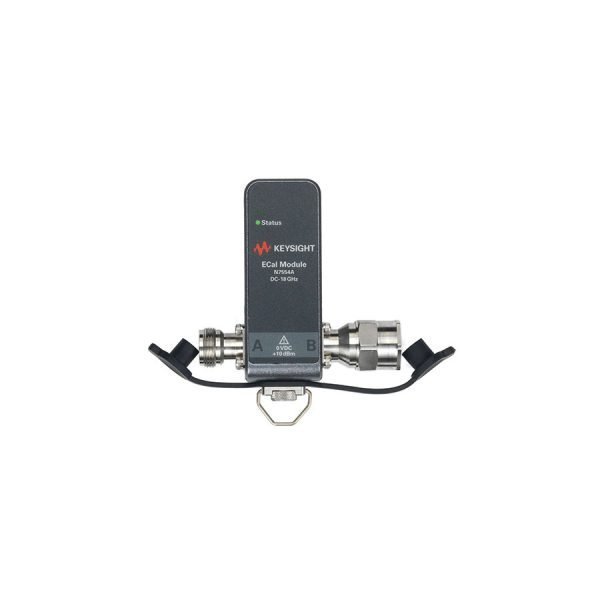

The Keysight N7554A/3MF Electronic Calibration Module (ECal) is a compact, high-performance calibration solution designed for vector network analyzers (VNAs) and other RF test equipment. Operating from DC to 18 GHz, this 2-port module provides accurate and repeatable calibration, ensuring the reliability of your measurements in demanding industrial and laboratory environments.
Key Features & Highlights
- Frequency Range: DC to 18 GHz, covering a wide spectrum of RF and microwave applications.
- 2-Port Configuration: Supports both transmission and reflection measurements for comprehensive calibration.
- Calibration Types: Open, short, load, and through standards for versatile calibration routines.
- High Accuracy: Magnitude accuracy of ±0.05 dB and phase accuracy of ±0.5° for reliable measurements.
- Excellent Repeatability: ±0.02 dB magnitude and ±0.2° phase repeatability ensures consistent results.
- Compact and Portable: Space-saving design ideal for benchtop and field use.
- Rugged Construction: Built for long-term stability and minimal recalibration needs.
Applications
The N7554A/3MF is ideal for calibration in R&D labs, production test, and field service environments where precise VNA measurements are critical. It is suitable for testing components such as filters, amplifiers, cables, and antennas, as well as for maintaining the accuracy of network analyzers in metrology and quality assurance applications.
