Keysight 8496G Programmable Attenuator, DC to 4 GHz, 110 dB

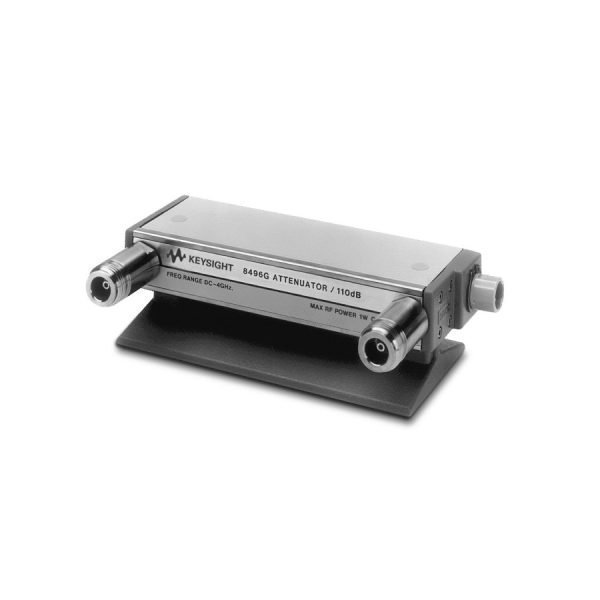

Keysight 8496G Programmable Attenuator

The Keysight 8496G Series Programmable Attenuator delivers precise, repeatable attenuation control for demanding RF test applications. Covering DC to 4 GHz with an attenuation range of 0 to 110 dB in 10 dB steps, this attenuator ensures accurate signal conditioning and power leveling. With 1 W power handling and a rugged design, the 8496G is built for reliable performance in laboratory and production environments.

Key Features & Highlights

• Frequency range: DC to 4 GHz
• Attenuation range: 0 to 110 dB in 10 dB steps
• Power handling: 1 W
• Insertion loss: <1.5 dB
• Return loss: >20 dB
• VSWR: <1.5:1
• Control interfaces: USB, GPIB, LAN
• Compact dimensions: 89 mm x 56 mm x 25 mm
• Lightweight: 0.2 kg

Applications

The Keysight 8496G is ideal for signal conditioning, power leveling, and test system calibration in R&D labs, manufacturing test, and field service. Its wide frequency range and precise step control make it suitable for a variety of RF and microwave applications.
