Keysight J7211B/002 Attenuation Control Unit, DC-18 GHz, 121 dB

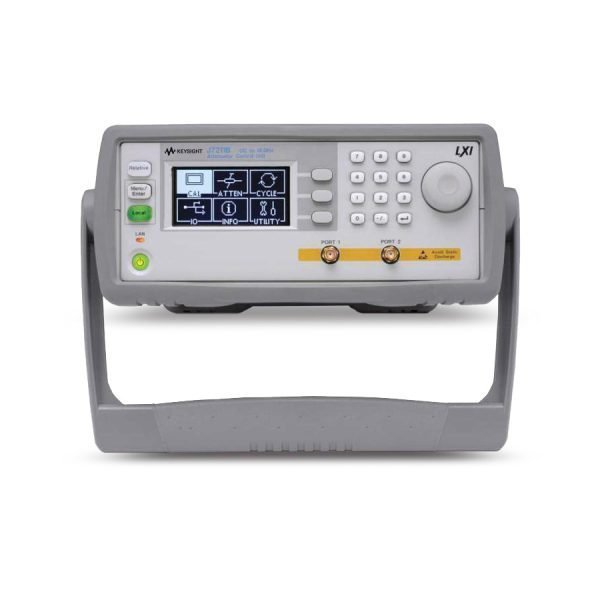

Keysight J7211B/002 Attenuation Control Unit

The Keysight J7211B/002 Attenuation Control Unit is a high-performance instrument designed for precise and reliable attenuation of RF signals from DC to 18 GHz. With an attenuation range of 0 to 121 dB and a fine 0.1 dB step size, it offers exceptional flexibility for a wide range of test and measurement applications. This unit ensures signal integrity with low insertion loss and excellent VSWR, making it an essential tool for engineers and technicians.

Key Features & Highlights

• Frequency Range: DC to 18 GHz covers a broad spectrum of RF applications.
• Attenuation Range: 0 to 121 dB with 0.1 dB step size for precise control.
• Low Insertion Loss: <1.5 dB minimizes signal degradation.
• Excellent VSWR: <1.5:1 ensures optimal impedance matching.
• Power Handling: +20 dBm suitable for most RF test signals.
• Connector Type: SMA(f) for easy integration with standard RF cables.
• Universal Power Supply: AC 100-240 V for global use.

Applications

The Keysight J7211B/002 is ideal for use in RF component testing, receiver sensitivity measurements, signal level calibration, and EMC testing. Its wide frequency range and high attenuation capability make it a versatile solution for both R&D labs and production test environments.
