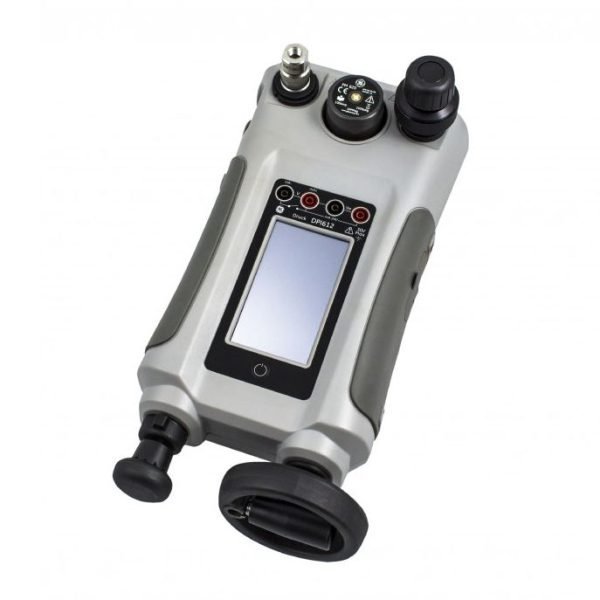

Designed for pneumatic pressure testing, the Druck DPI612 Pneumatic Pressure is a practical, professional instrument. Highlights: this model excels in a wide range of applications from a few mbar/psi through to 100.
- This model excels in a wide range of applications from a few mbar/psi through to 100 bar/1500 psi
- It retains the low to medium pressure capability of the pFlex, but incorporates an advanced generation system extending its range five times
- The pressure intensifier makes generating pressures from a few mbar/psi through to
- 40 bar/600 psi much quicker and easier and on the occasions when high pressure is required from a clean gas source, the pFlexPro is a safe and easy-to-transport alternative to bottled gas
- Pressure Range:
- 14.5 to 300 gauge Maximum working pressure:
- 100 bar / 1500 psi pneumatic Maximum vacuum:
- 95% of atmospheric pressure Pressure media:
- Non-corrosive gases Pressure connection:
- Quick-to-fit connection system
- G1/8 female and 1/8 NPT female adaptors are provided Size and weight:
- 350 mm x 170 mm x 160 mm ( 13.7 in x 6.7 in x
- 6.3 in) excluding accessories 4.1 kg (9 lb) including battery and pressure module > Each
- Unit Includes PM 620 pressure module, VAC to
- 300 psig Rechargeable battery Hose Carry case
- Dirt and moisture trap
- Pressure relief valve includes battery charger ( IO620-PSU) carrying strap (IO612-STRAP) test leads (IO61X-LEADS) user guide calibration certificate
