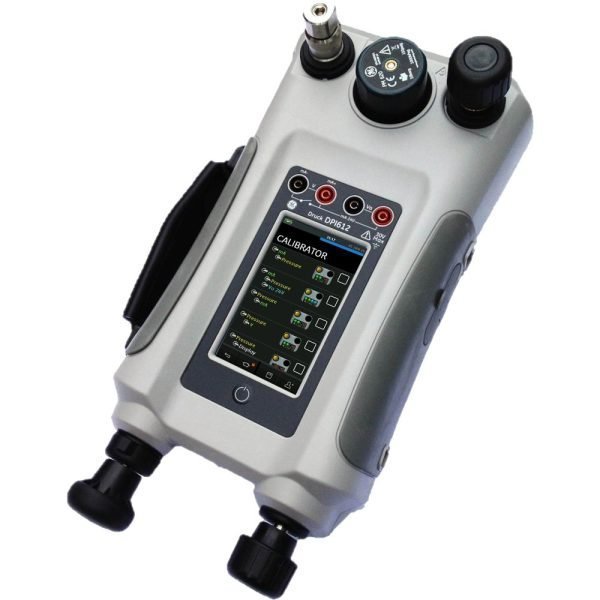

Designed for pneumatic pressure testing, the Druck DPI612-PFX-7G Pneumatic Pressure is a practical, professional instrument. Highlights: these fully self-contained pressure test and calibration systems have interchangeable.
- These fully self-contained pressure test and calibration systems have interchangeable pressure modules for flexible ranging, generate pneumatic pressure, measure process signals and supply loop power
- They provide all the convenience of the
- Druck DPI 610/615 series with significantly improved generation capabilities, higher accuracy and simplified touch screen operation
- The pFlex pneumatic versions have a simple selector to let you convert from vacuum to pressure and with the high efficiency hand pumps and volume adjusters you can generate accurate pressure quickly and with ease
- ideal in low to medium pressure applications from a few mbar/psi to 20 bar/300 psi Pressure Range:
- 14.5 to 100 gauge Maximum working pressure:
- 20 bar / 30 psi pneumatic Maximum vacuum:
- 95% of atmospheric pressure Pressure media:
- Non-corrosive gases Pressure connection:
- Quick-to-fit connection system
- G1/8 female and 1/8 NPT female adaptors are provided Size and weight:
- 350 mm x 170 mm x 145 mm ( 13.7 in x 6.7 in x
- 5.7 in) excluding accessories 3.4 kg (7.5 lb) including battery and pressure module
- Generation system:
- Pressure/vacuum selector, high efficiency pump, fine adjuster, precision release valve > Each
- Unit Includes PM 620 pressure module, VAC to
- 100 psig Rechargeable battery Hose Carry case
- Dirt and moisture trap battery charger ( IO620-PSU) carrying strap (IO612-STRAP) test leads (IO61X-LEADS) user guide calibration certificate
