Pneumatic Pressure
Pneumatic pressure calibrators and comparators generate and control gas pressure for checking gauges, switches and transmitters where no liquid may enter the instrument.
Druck, DH-Budenberg, Crystal Engineering and Condec cover this range. Pneumatic generation is preferred wherever the device under test must stay clean and dry, which includes oxygen service, medical gas and any instrument that will return to a gas process. Practical ranges extend to a few hundred bar, above which hydraulic generation becomes necessary. Look for a fine adjustment vernier, since settling exactly on a test point is what makes the work repeatable, and confirm the supply requirement if the unit needs external compressed gas.
DH-Budenberg / Mensor CPC4000-PSIA-15 pressure calibrator with ±0.02% reading accuracy, up to 3,045 psi, dual removable transducers, and a 7-inch color touchscreen.
The Druck DPI612-PFX-10G is a portable pneumatic pressure calibrator offering high accuracy (±0.025% of reading) and a wide pressure range (-14.5 to 150 psi). With its rugged IP65-rated design, intuitive touchscreen, and wireless connectivity, it is ideal for demanding industrial calibration applications.

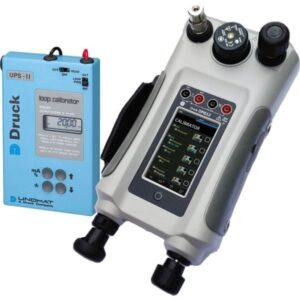

The Druck DPI612-PFX-7A is a self-contained pneumatic pressure calibrator offering 0-100 psi absolute range and interchangeable modules. It generates pressure, measures process signals, and supplies loop power. Includes a free UPS II mA calibrator for enhanced functionality.
The Druck DPI612-PFX-20G is a portable pneumatic pressure calibrator offering a gauge pressure range of -1 to 20 bar (-14.5 to 300 psi). It combines a pump, measure, and analyze functions in one rugged, touchscreen device, delivering best-in-class accuracy for low to medium pressure applications.
The DH-Budenberg / Mensor CPC4000-PSIG-1500 is a high-accuracy pneumatic pressure calibrator with 0.02% full-scale accuracy. It features a wide pressure range up to 3,045 psi, a 7-inch color touchscreen, and removable interchangeable transducers for flexibility. Ideal for industrial calibration applications.
The Druck DPI612 is a versatile pneumatic pressure calibrator offering precise pressure generation and measurement from vacuum to 1500 psi. Ideal for industrial calibration, it features a built-in pressure module, rechargeable battery, and rugged design for field and workshop use.
The DH-Budenberg / Mensor CPC4000-PSIA-1515 is a high-accuracy pneumatic pressure calibrator with 0.02% accuracy and a wide pressure range up to 3,045 psi. Featuring a 7-inch color touchscreen and removable interchangeable transducers, it offers superior performance at a lower price. Ideal for industrial automation and process control applications.
Druck DPI612 pneumatic pressure. This model excels in a wide range of applications from a few mbar/psi through to 100 bar/1500 psi.
DH-Budenberg / Mensor CPC4000-PSIB-3045 pneumatic pressure. 0.02% Wide pressure range to 3,045psi 7 color trouchscreen display.
DH-Budenberg / Mensor CPC4000-PSIG-5 pneumatic pressure. 0.02% wide pressure range to 3,045psi.
Crystal Engineering HPC41-1KPSI-BHX pump kit, -27 inHg to 580 psi, with carrying case and fittings.
Druck DPI612-PFX-7G pneumatic pressure. ideal in low to medium pressure applications from a few mbar/psi to 20 bar/300 psi Pressure Range:.
