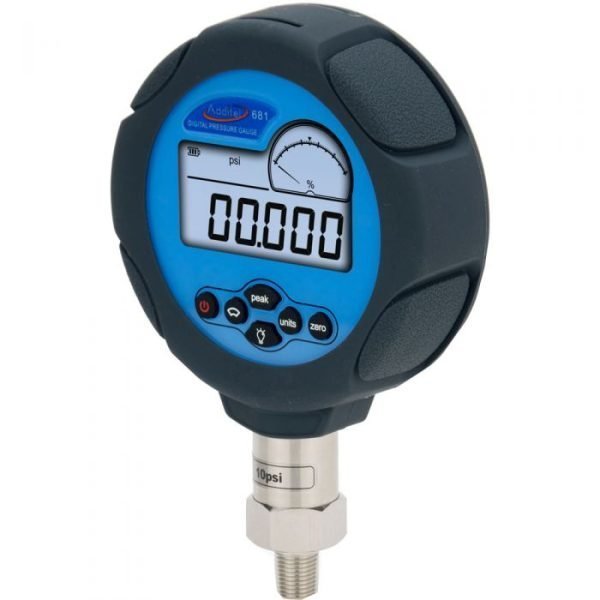

Additel ADT681-02-CP10-PSI-N-PB-DL Digital Pressure Gauge

This Additel ADT681-02-CP10-PSI-N-PB-DL pressure gauge delivers 0.02% full span accuracy for compound pressure measurement, with panel-mount options and data logging included.

The Additel ADT681-10-GP30K-BAR-AF-DL is a digital pressure gauge from the 681 series, engineered for accurate and reliable pressure measurement across demanding applications. This configuration combines advanced microprocessor technology and temperature-compensated silicon sensors with stand-alone data logging.

• Pressure ranges to 60,000 psi (4,200 bar)
• Now offering 0.05% accuracy up to 40K psi
• 0.02%, 0.05%, 0.1%, 0.2% FS or 0.1%RD accuracy % pressure indication with fan-shaped graph scale for visual reference
• Fully temperature compensated accuracy Panel mount gauges are available
• Intrinsically safe version (681IS)
• Data logging option IP67 rated (681IS) With advanced microprocessor technology and silicon pressure sensors, the
• 681 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications
• They are loaded with functionality and remarkably easy to use
• To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly
• At Additel, fully temperature compensated accuracy means every sensor is pressure tested at several environmental temperatures from -10°C to
• With this test data individual coefficients are generated and stored in the gauge characterizing its performance over the full temperature compensated range
• And now the ADT681IS comes with an IP67 rating meaning it is dust resistant and water proof, submersible in 1 meter of water
• Designed to fit your need Additel pressure gauges give you the widest variety of sensor choices on the market
• Whether you require low inches of water measurement or very high pressure measurement, we have a gauge that will meet your need
• We offer sensors which are ±1 inH2O (±2.5 mbar) to 60K psi (4,200 bar) and everything in between
• Do your applications require you to measure both positive and vacuum pressure?
• Our compound gauges do not compromise accuracy and provides you with the same high accuracy specification on both positive and vacuum pressures
• We offer a wide variety up to 300 psi (20 bar)
• If you need a higher range, just contact us and we can likely customize one to meet your need
• We also offer absolute pressure sensors to
• 5K psi (350 bar) and a full range of differential pressure sensors from ±1 inH2O (±2.5 mbar) to ±300 inH2O (±700 mbar)
• Are you looking for a pressure gauge to use in hazardous areas?
• Our certified (ATEX, CSA US & IECEx) intrinsically safe models (681IS) are designed for pressure measurement in hazardous areas
• If you need to panel mount our sensors, we offer the option (see ordering information) for a back-mounted pressure port and gauge housing designed to fit in a panel
• And most recently, weve added the option to do stand-alone data logging with the 681
• Now you can record more than 21,000 recor ds internal to the 681 series
• Each record includes date, time, pressure and temperature readings
• Download the logged data with our free Additel/Land software or you can purchase our Additel/Log II for real-time logging and data analysis
• The 681 series digital pressure gauges are in performance and reliability
• Best of all, they are very affordable
• Features Pressure ranges to 60,000 psi (4,200 bar)
• 0.02% full span accuracy (681-02) 0.05% full span accuracy (681-05)
• 0.1% full span accuracy (681-10) 0.2% full span accuracy (681-20)
• 0.1% reading span accuracy (681-RD) IP67 rated:
• Submersible in 1 meter of water(681IS) Fully temperature compensated accuracy from
• 14°F to 122°F (-10°C to 50°C) Up to eleven selectable pressure units
• Large, easy to read display with 5-digit resolution
• Backlit display % pressure indication with fan-shaped graph scale for visual reference
• Display flash warning when pressure over
• 120% of FS Bottom mount or panel mount ATEX certified intrinsically safe (Model
• 681IS) NIST traceable calibration with data(included)
• 9V battery power or AC adapter (optional)
• Data logging to 21,843 records (includes date, time, pressure and temperature)
