Product overview

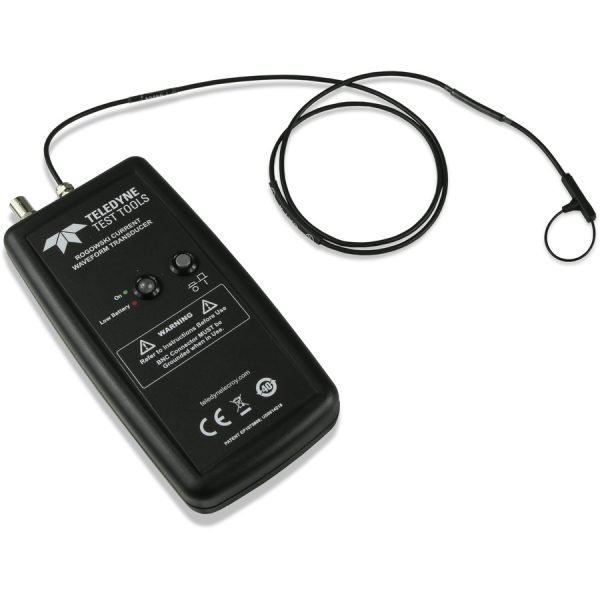

The Teledyne LeCroy T3RC0300-UM Current Probe is an AC current probe for oscilloscopes and other test equipment. It measures currents up to 300 A with 20 mV/A sensitivity and provides a 9.2 Hz to 30 MHz bandwidth.

Applications and selection

Select this probe for power electronics, motor control, automotive testing, and general AC current measurements where broad bandwidth and a BNC connection are useful. Its 1 m cable provides practical reach for bench and field setups.

Technical information

• Bandwidth: 9.2 Hz to 30 MHz
• Sensitivity: 20 mV/A
• Maximum current measurement: 300 A
• Cable length: 1 m
• Connector: BNC
• Dimensions: 150 mm × 50 mm × 25 mm
• Weight: 200 g

Request a quotation

Contact us for a quotation on the Teledyne LeCroy T3RC0300-UM Current Probe and confirm compatibility with your oscilloscope or test equipment.
