Teledyne LeCroy RP4060 Power Rail Probe, 4 GHz, ±60V Offset

Teledyne LeCroy RP4060 Power/Voltage Rail Probe

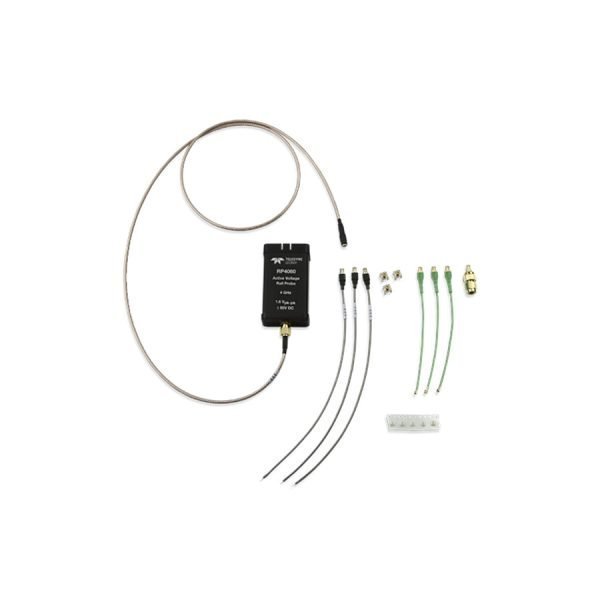

The Teledyne LeCroy RP4060 is a high-performance power/voltage rail probe engineered for accurate measurement of power and voltage rails in modern electronic systems. With its 4 GHz bandwidth, 1.2x attenuation, and wide ±60V offset range (down to ±800mV), this probe delivers precise, low-distortion signal acquisition for power integrity analysis, high-speed digital design validation, and EMI troubleshooting.

Key Features & Highlights

• 4 GHz Bandwidth: Captures high-speed transients and fast edge rates with exceptional fidelity.
• 1.2x Attenuation: Minimizes signal loading and preserves waveform integrity.
• Wide Offset Range (±60V to ±800mV): Accommodates a broad spectrum of rail voltages, from low-voltage cores to higher-voltage supplies.
• High Input Impedance (10 MΩ): Ensures minimal circuit loading for accurate measurements.
• Low Capacitance (1.5 pF): Reduces signal distortion and maintains high-frequency performance.
• Compact, Lightweight Design: Facilitates easy handling and access in dense test setups.

Applications

The RP4060 is ideal for power integrity validation, voltage rail monitoring, and debugging of high-speed digital circuits. It is commonly used in R&D labs, production test, and field service environments where precise power rail measurements are critical.
