Teledyne LeCroy HVD3206A-6M Differential Probe, 2 kV, 80 MHz, 6m Cable

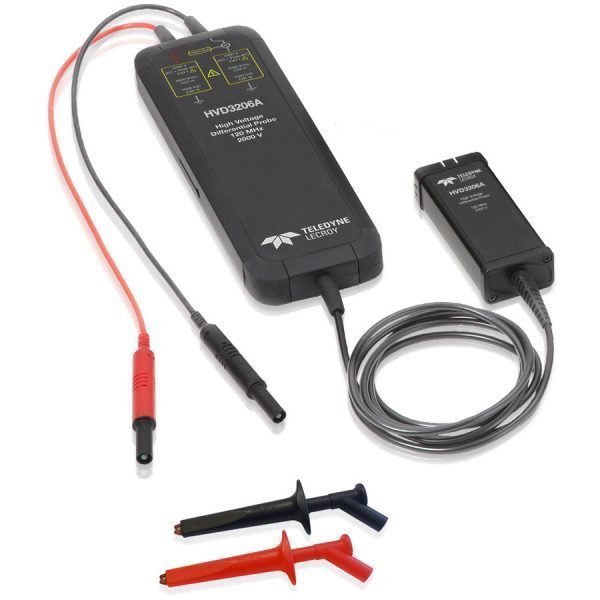

Teledyne LeCroy HVD3206A-6M Differential Probe

The Teledyne LeCroy HVD3206A-6M is a high-voltage differential probe designed for precise measurements in high-power electronics applications. With its 2 kV peak differential voltage rating and 80 MHz bandwidth, it enables accurate analysis of signals in power converters, motor drives, and other high-voltage systems. The 6-meter cable provides flexibility and convenience, making it ideal for bench and field use.

Key Features & Highlights

• High Voltage Rating: 2 kV peak differential voltage for safe measurement of high-voltage signals.
• Wide Bandwidth: DC to 80 MHz captures fast transients and high-frequency components.
• Auto Zero: Automatic zeroing enhances measurement accuracy by compensating for offset errors.
• 6m Cable: Long cable length provides flexibility and convenience during measurements.
• HVD3000A Series Compatibility: Integrates seamlessly with other HVD3000A series probes for expanded measurement capabilities.
• Compact and Lightweight: Easy to handle and transport.

Applications

This differential probe is essential for engineers and technicians working with high-voltage electronics. Typical applications include power converter design, motor drive troubleshooting, and analysis of switching power supplies. Its high voltage rating and wide bandwidth ensure accurate and reliable measurements, enabling efficient troubleshooting and design optimization.
