Teledyne LeCroy HVD3102A Differential Probe, 1 kV, 25 MHz, Auto Zero

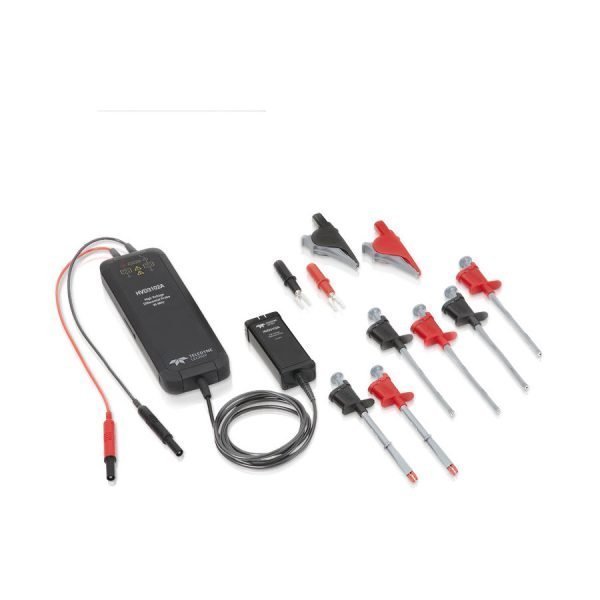

Teledyne LeCroy HVD3102A Differential Probe

The Teledyne LeCroy HVD3102A is a high-performance differential probe designed for accurate and reliable high-voltage measurements in demanding industrial and laboratory environments. With a ±1 kV differential input range and 25 MHz bandwidth, this probe is ideal for capturing fast transients and waveforms in power electronics, motor drives, and other high-power applications. The built-in auto-zero function eliminates offset errors, ensuring precise measurements every time.

Key Features & Highlights

• High-Voltage Capability: Measures differential voltages up to ±1 kV, suitable for a wide range of high-power systems.
• 25 MHz Bandwidth: Captures fast signal transitions and transient events with a rise time of less than 14 ns.
• Auto-Zero Function: Automatically compensates for DC offset, enhancing measurement accuracy and reducing setup time.
• Convenient 2m Cable: Provides ample reach for flexible positioning and easy connection to the device under test.
• Compatibility: Part of the HVD3000A Series, ensuring seamless integration with other probes and oscilloscopes.
• High Input Impedance: 10 MΩ || 10 pF minimizes loading on the circuit under test.
• Excellent CMRR: >100 dB at 50 Hz for superior rejection of common-mode noise.

Applications

The HVD3102A is essential for engineers and technicians working with high-voltage systems, including:

• Power supply design and testing
• Motor drive and inverter development
• Switch-mode power supply troubleshooting
• Power electronics education and research

With its robust design and advanced features, the Teledyne LeCroy HVD3102A ensures accurate and reliable measurements, helping you save time and improve efficiency in your testing and validation processes.
