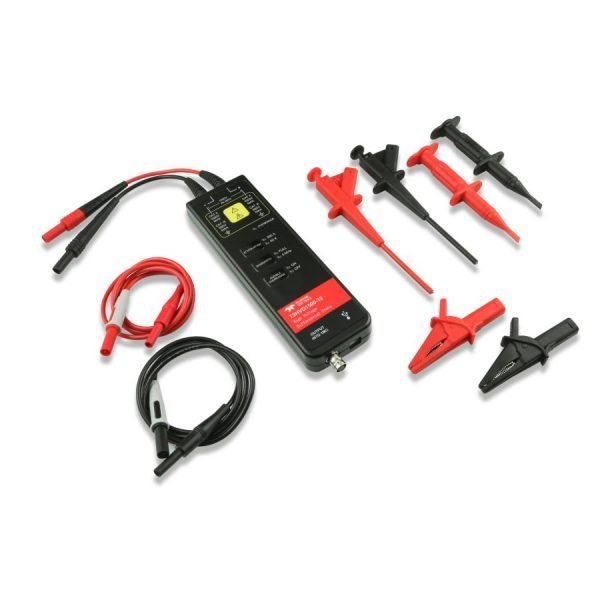

Teledyne LeCroy T3HVD1500-70 High-Voltage Differential Probe, 70 MHz, 1.5 kV

The Teledyne LeCroy T3HVD1500-70 High-Voltage Differential Probe is engineered for engineers and technicians who demand accurate, reliable measurements in high-power electronics applications. With a 70 MHz bandwidth and a ±1.5 kV differential voltage range, this probe delivers exceptional signal fidelity while minimizing circuit loading thanks to its 10 MΩ input impedance and 2 pF capacitance. Whether you’re testing motor drives, power inverters, or switching power supplies, the T3HVD1500-70 provides the performance and safety you need.

Key Features & Highlights

• 70 MHz Bandwidth: Captures fast transients and high-frequency signals with precision.
• ±1.5 kV Differential Range: Safely measures high-voltage signals in demanding environments.
• High Input Impedance (10 MΩ) & Low Capacitance (2 pF): Minimizes loading effects for accurate signal reproduction.
• High CMRR (>100 dB at 50 Hz): Rejects common-mode noise for clean measurements.
• Auto-ranging & Auto-zeroing: Simplifies setup and ensures consistent accuracy.
• Compact & Lightweight Design: Easy to handle and use in tight spaces.

Applications

This probe is ideal for a wide range of high-power applications, including power electronics design, motor drive testing, inverter/converter analysis, and floating measurements in industrial systems. Its robust construction and reliable performance make it a valuable tool for R&D labs, production test, and field service.
