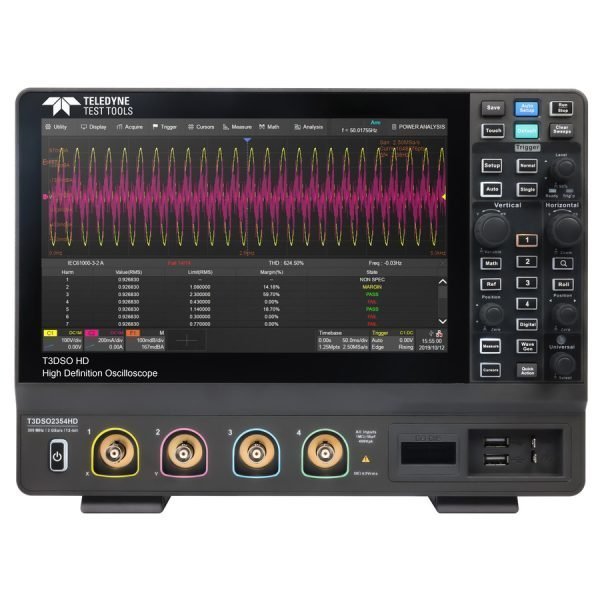

Teledyne LeCroy T3DSO2354HD Digital Oscilloscope
The Teledyne LeCroy T3DSO2354HD is a high-performance 4-channel digital oscilloscope from the T3DSO2000HD series, offering 350 MHz bandwidth, 2 GS/s sample rate, and 200 Mpts memory depth. This instrument is engineered for engineers and technicians who demand precision and reliability in signal analysis, making it an essential tool for electronic design, debugging, and testing applications.
Key Features & Highlights
- 4 Analog Input Channels: Simultaneously capture and compare multiple signals with 350 MHz bandwidth.
- 2 GS/s Real-Time Sample Rate: Ensure accurate representation of fast transients and high-frequency signals.
- 200 Mpts Memory Depth: Record long time windows without sacrificing resolution, ideal for capturing rare events.
- 10.1-inch Capacitive Touchscreen: Intuitive operation with multi-touch gestures and a user-friendly interface.
- Wave Inspector® Controls: Efficiently navigate and search through waveforms to quickly locate anomalies.
- Advanced Triggering: Edge, pulse width, and runt triggering to isolate specific signal events.
- Serial Bus Decoding: Decode I2C, SPI, CAN, and LIN protocols for embedded system debugging.
- Built-in Function Generator: Generate test signals without needing an external source.
Applications
The T3DSO2354HD is well-suited for a variety of applications, including power electronics design, automotive electronics testing, embedded system development, and educational laboratories. Its deep memory and advanced triggering make it particularly effective for troubleshooting intermittent faults and analyzing complex serial communication buses.
