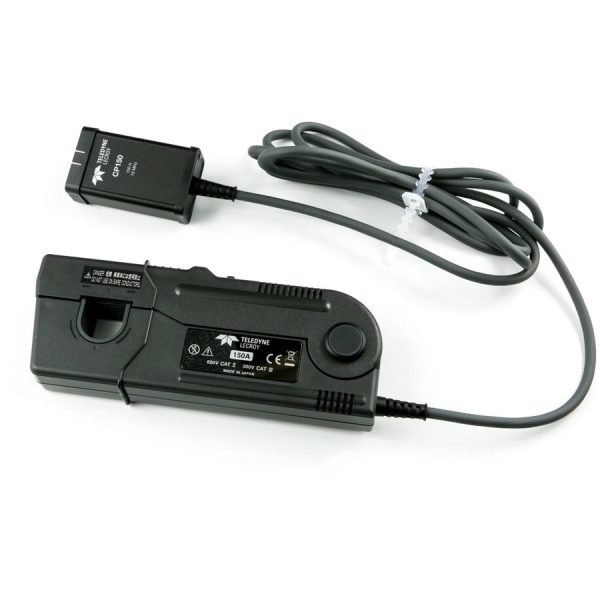

Teledyne LeCroy CP150-6M Current Probe, AC/DC, 150A, 5MHz

Teledyne LeCroy CP150-6M Current Probe

The Teledyne LeCroy CP150-6M is a high-performance AC/DC current probe designed for precise and reliable current measurements in demanding applications. With a wide measurement range from 100 mA to 150 A, a 5 MHz bandwidth, and a 600 V CAT2 safety rating, this probe is an essential tool for engineers, technicians, and researchers who require accurate current waveform analysis.

Key Features & Highlights

• AC/DC Measurement Capability: Measures both AC and DC currents with high accuracy.
• Wide Measurement Range: From 100 mA to 150 A continuous, with peak current capability up to 500 A.
• High Bandwidth: 5 MHz bandwidth captures fast-changing current waveforms for dynamic measurements.
• High Safety Rating: 600 V CAT2 rating ensures safe operation in various electrical environments.
• Split-Core Design: Easy to clamp around conductors without breaking the circuit.
• Flexible Coil: Convenient for use in tight spaces and around complex wiring.
• BNC Connector: Compatible with most oscilloscopes and other test equipment.

Applications

The CP150-6M is ideal for power supply design, motor drive analysis, inverter testing, and general electronic circuit debugging. Its combination of wide bandwidth and high current capability makes it suitable for both low-level signal measurements and high-power applications.
