Tektronix TPP1000 1 GHz Passive Probe, 10X, TekVPI

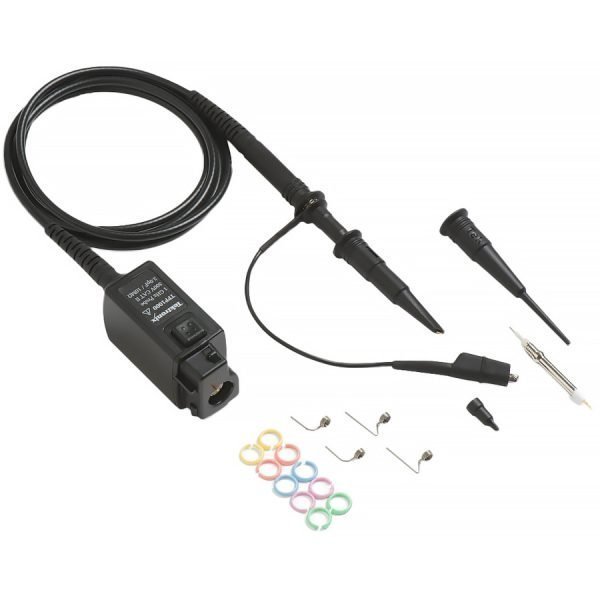

Tektronix TPP1000 Passive Probe – 1 GHz, 10X Attenuation, TekVPI

The Tektronix TPP1000 is a high-performance passive probe engineered for precise measurements with Tektronix oscilloscopes. With a 1 GHz bandwidth, 10X attenuation, and ultra-low 3.9 pF input capacitance, this probe minimizes circuit loading and delivers accurate signal reproduction for high-speed digital and analog applications. Its TekVPI interface ensures plug-and-play compatibility and automatic scaling, making it an essential tool for engineers and technicians.

Key Features & Highlights

• 1 GHz Bandwidth: Captures high-frequency signals with fidelity, ideal for high-speed digital design and debug.
• 10X Attenuation: Reduces signal amplitude for safe viewing of higher-voltage signals while preserving waveform integrity.
• Low Input Capacitance (3.9 pF): Minimizes loading on the circuit under test, ensuring accurate measurements.
• High Input Resistance (10 MΩ): Provides minimal signal disturbance and maintains signal integrity.
• 300 V CAT II Rating: Certified for safe use in typical electrical environments, enhancing user safety.
• TekVPI Interface: Seamless integration with Tektronix oscilloscopes, enabling automatic probe recognition and scaling.

Applications

The TPP1000 is versatile for a wide range of measurement tasks, including debugging digital circuits, analyzing high-speed serial buses, troubleshooting analog systems, and educational laboratory use. Its combination of bandwidth, low capacitance, and safety rating makes it a reliable choice for demanding engineering environments.
