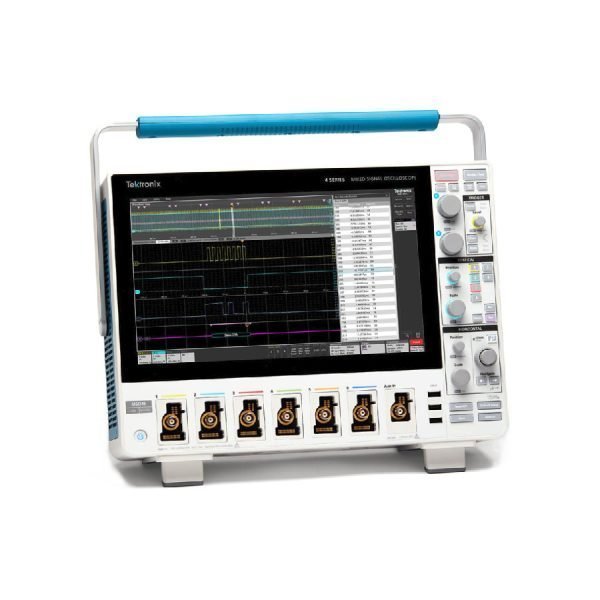

The Tektronix MSO46B/4-BW-1000 Mixed Signal Oscilloscope delivers exceptional performance and versatility for demanding engineering applications. With 6 analog and 48 digital channels, 1 GHz bandwidth, and a 6.25 GS/s sample rate, this 4 Series B MSO provides the precision and depth needed to tackle complex debugging, characterization, and validation tasks.
Key Features & Highlights
- 6/48 Channels: Simultaneously acquire and analyze up to 6 analog and 48 digital signals for comprehensive mixed-signal debugging.
- 1 GHz Bandwidth: Capture high-frequency components with confidence, ensuring accurate representation of fast transients.
- 6.25 GS/s Sample Rate: Achieve high-resolution waveform capture for precise signal analysis.
- 4 Series B MSO Architecture: Benefit from deep memory and fast waveform update rates for efficient troubleshooting.
- 15.6-inch Capacitive Touchscreen: Navigate and control the instrument with an intuitive, responsive interface.
- Advanced Triggering: Utilize edge, pulse width, and logic triggering to isolate specific events.
- Built-in Spectrum Analyzer: Perform frequency-domain analysis without additional equipment.
- Protocol Analysis (Optional): Decode popular serial buses for streamlined communication debugging.
Applications
This oscilloscope is ideal for embedded system design, power electronics development, automotive electronics, aerospace, and telecommunications. Its combination of high bandwidth, deep memory, and mixed-signal capabilities accelerates troubleshooting and design validation, making it a valuable tool for engineers and technicians seeking to optimize performance and reliability.
