Keysight 84907L/024/101 Programmable Attenuator, 40 GHz, 70 dB, 10 dB Steps

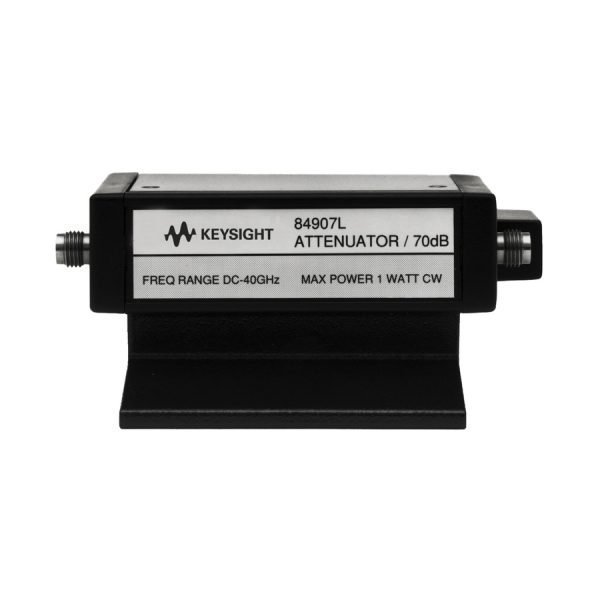

Keysight 84907L/024/101 Programmable Attenuator

The Keysight 84907L/024/101 is a high-performance programmable attenuator designed for precise signal control in RF and microwave test systems. With a frequency range from DC to 40 GHz and an attenuation range of 0 to 70 dB in 10 dB steps, this attenuator delivers exceptional accuracy and repeatability, making it an essential component for signal conditioning, power leveling, and gain control in a wide variety of applications.

Key Features & Highlights

• Broad Frequency Coverage: DC to 40 GHz ensures compatibility with a wide range of RF and microwave systems.
• Wide Attenuation Range: 0 to 70 dB in 10 dB steps provides flexible signal level control.
• Low Insertion Loss: <1.5 dB at 40 GHz minimizes signal degradation.
• High Return Loss: >20 dB at 40 GHz prevents signal reflections and maintains signal integrity.
• Low VSWR: <1.5:1 at 40 GHz ensures optimal impedance matching.
• High Power Handling: +20 dBm CW accommodates moderate power levels.
• Versatile Control Interfaces: USB, GPIB, and LAN enable easy integration into automated test systems.

Applications

The Keysight 84907L/024/101 is ideal for use in signal conditioning, power leveling, gain control, and automated test equipment (ATE) setups. Its precision and reliability make it suitable for research and development, manufacturing test, and field service applications where accurate attenuation is critical.
