Keysight 423B/003/101 Low-Barrier Schottky Diode Detector, 12.4 GHz, Positive Polarity

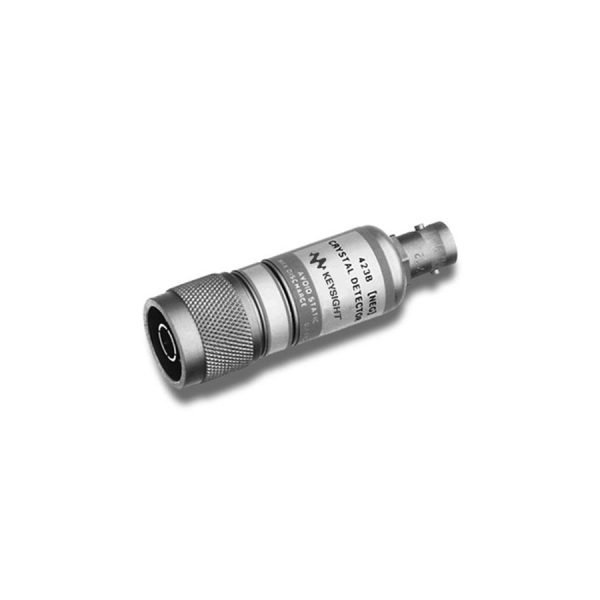

Keysight 423B/003/101 Low-Barrier Schottky Diode Detector

The Keysight 423B/003/101 is a precision RF detector designed for accurate power measurement, modulation analysis, and signal monitoring across a wide frequency range. Featuring a low-barrier Schottky diode, this detector delivers exceptional sensitivity and linearity, ensuring reliable performance in demanding test and measurement environments.

Key Features & Highlights

• Frequency Range: 10 MHz to 12.4 GHz – covers a broad spectrum for versatile applications.
• High Sensitivity: -40 dBm sensitivity enables detection of low-level signals.
• Excellent Linearity: ±0.5 dB linearity ensures accurate power measurements.
• Match Response: ±0.5 dB match response minimizes errors due to impedance mismatches.
• Positive Polarity: Simplifies integration with existing test setups.
• SMA Connectors: Standard connectors for easy and secure connections.

Applications

This detector is ideal for use in RF power measurement, signal monitoring, and modulation analysis in laboratories, production testing, and field service. Its robust design and high performance make it a valuable tool for engineers and technicians working with RF and microwave systems.
