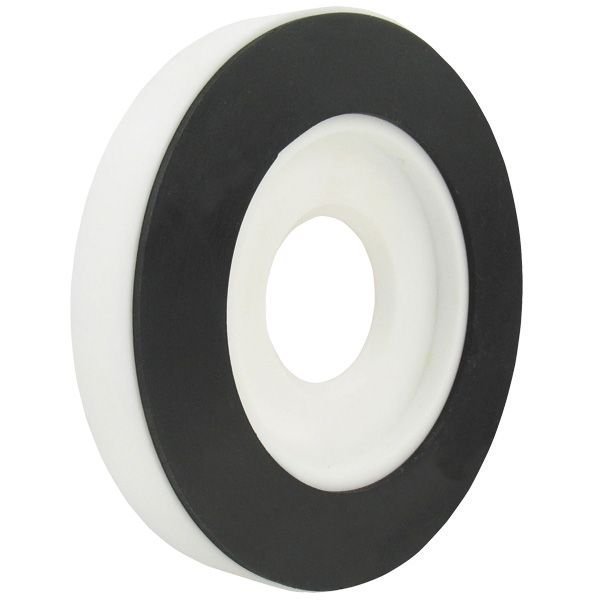

The Dwyer Instruments TE-Q-3 is a high-quality orifice plate flowmeter engineered for accurate and reliable flow measurement in demanding industrial environments. Part of the Series TE, this flowmeter features a one-piece PTFE construction that integrates a unique holder or carrier ring with metering taps and integral gaskets, ensuring a robust and leak-tight installation. Designed for line sizes from 1/2 to 24 inches, the TE-Q-3 is versatile enough for use with gases, liquids, corrosive, and high-temperature fluids.
Key Features & Highlights
- One-Piece PTFE Construction: Provides excellent chemical resistance and low friction, minimizing wear and ensuring long-term reliability.
- Integral Gaskets and Metering Taps: Simplifies installation and ensures accurate pressure measurement without the need for separate components.
- Wide Line Size Range: Suitable for pipe sizes from 1/2 to 24 inches, offering flexibility across various applications.
- Easy Installation: Can be slipped between standard flanges, eliminating the need for specialized orifice flanges.
- Weather Resistant and Flame Retardant: Durable construction suitable for outdoor and hazardous environments (without factory gaskets).
- Enhanced Stability: Orifice plate thickness of 1/4 inch provides greater stability and accuracy in flow measurement.
Applications
The Dwyer Instruments TE-Q-3 is ideal for use in chemical processing, water treatment, HVAC systems, and industrial automation where accurate flow measurement is critical. It can be used in place of conventional orifice plates or other primary differential producers, offering efficiency and cost-effectiveness. Its corrosion-resistant design makes it suitable for aggressive media, ensuring dependable performance in harsh conditions.
