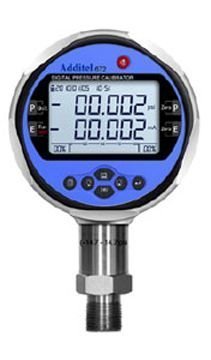

Additel ADT672-02-DP150-BAR Pressure Calibrator

Additel ADT672-02-DP150-BAR Overview

The Additel ADT672-02-DP150-BAR is a digital pressure calibrator for differential pressure measurement, transmitter testing, and pressure switch testing. It combines dual readout, data logging, and Min/Max/Hold functions in a portable calibration instrument.

Applications and Selection

Select this Additel calibrator for pressure measurement and process-control work requiring mA or V measurement, a 24 V loop supply, HART communication, and differential pressure accessories. The product data also lists an ADT 672-02 uncertainty of 0.02% FS.

Technical Information

• Pressure measurement uncertainty: 0.02% FS for ADT 672-02; 0.05% FS for ADT 672-05
• Pressure ranges to 36,000 psi (2,500 bar)
• mA or V measurement accuracy: 0.02% RD, 0.003% FS
• 24 V loop supply, pressure switch test, and HART communication
• Temperature compensation, dual readout, data logging, and 6-digit resolution
• Rechargeable battery or AC adapter; NIST-traceable calibration
• Includes 110/220 V adapter, two 1.5 m test leads, and two 0.156 in. test hoses

Request a Quotation

Contact Indomultimeter for a quotation on the Additel ADT672-02-DP150-BAR and confirm the pressure range and accessories.
