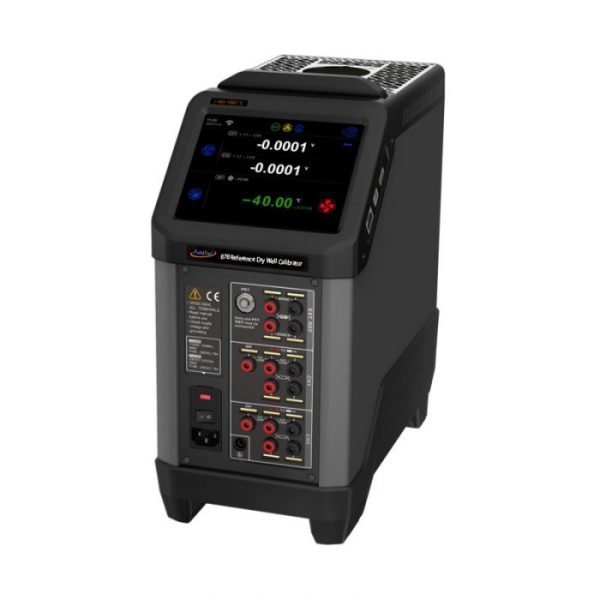

Additel ADT878-160-B-220V Temperature Calibrator

For temperature calibration work, the Additel ADT878-160-B-220V Temperature Calibrator delivers dependable performance. Highlights: reference Dry Well Calibrator, -40 Degrees C.

• Reference Dry Well Calibrator, -40 Degrees C to
• 160 Degrees C, Insert B, 220V Reference level performance in accuracy, stability and uniformity
• Quick to temperature Two-channel readout measures RTDs and TCs, and provides task documentation
• Full HART communicator Optional external temperature control
• Wi-Fi and Bluetooth capable Color touch screen display
• Quick-Push connectors (PC Option) Set point control by reference
• Self-calibration feature Optional TPW kit for built-in automatic realization (ADT878-160 only)
• Built-in automatic annealing feature (ADT878-700 only) > Overview
• We are taking temperature calibration to the next level with the
• Additel 878 Reference Dry Well Calibrators
• If you are looking for the best dry well on the market, then look no further!
• Additels commitment to continuous improvement, quality and time saving features are on full display in the ADT878 series
• With three models to choose from, ranging from -40 to 700°C, you will find the perfect fit for your calibration needs
• The Process
• Calibrator option adds an external reference input, a two-channel readout for UUTs and a full complement of capabilities to help with everything from measuring temperature sensors, to calibrating thermocouples, self-calibrating the
• Reference Well and configuring HART transmitters
• Each unit comes standard with a large touchscreen display, dual-zone control and
• Additels commitment to the best customer service in the industry
• We are certain that you will be blown away by the outstanding performance of these Reference Dry Wells!
• Self-Calibration We believe using an external reference probe as your standard is the best way to perform your temperature calibration
• But we also recognize this method is not always necessary or convenient and depending on the application, using the internal control sensor would be preferred
• Traditionally, the internal control sensor has a wide accuracy which can largely be contributed to its long-term drift
• Weve built-in a self-calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference
• With literally a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference
• Automation Features Traditionally, dry wells were simply a stable heat source
• To enhance the usability of our Reference
• Wells, weve added automation features enabling you to utilize these amazing devices as a highly stable heat source, triple point of water maintenance apparatus, and annealing furnace
• Combined with the ADT878-TPW-KIT, the ADT878-160
• Reference Dry Well can be used to automatically realize and maintain a triple point of water cell
• Traditional methods take time and practice to realize the triple point of water
• Additel has now simplified this process with an automatic TPW realization feature
• Simply insert the cell and PRT into the Reference Dry Well and run the procedure
• The automation in the firmware will alert when the cell is super cooled
• Remove the cell and give it a shake and now you can maintain the triple point in the reference well
• This is very useful to check the drift of your PRT
• For more information, please see our ADT878-TPW-KIT data sheet
• When you purchase our 700°C Reference Dry Well, you will find our automatic annealing feature used to anneal PRTs
• We have preconfigured annealing procedures that set the temperature annealing time and cool down rate
• This feature, also lets you create your own annealing procedures
