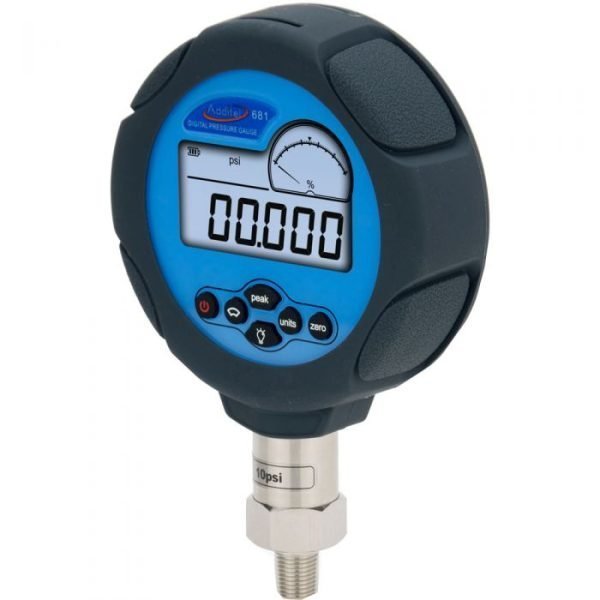

Additel ADT681-02-CP15-BAR-N2-PB-DL Digital Pressure Gauge is a compound-pressure digital gauge configuration for accurate positive and vacuum pressure measurement, panel mounting, and internal data logging. Temperature-compensated silicon sensing and a clear digital display support dependable calibration and test work.
Applications and selection
Select this ADT681 configuration for nitrogen or pneumatic measurement, panel-mounted instrumentation, pressure calibration, and applications requiring recorded pressure and temperature values. Its compound capability supports positive and vacuum readings; confirm the required range, mounting, units, and hazardous-area requirements before ordering.
Technical information
- Accuracy option: 0.02% full span for the 681-02 configuration
- Compound pressure range: up to 300 psi (20 bar) for listed compound versions
- Sensor: temperature-compensated silicon
- Display: backlit, 5-digit resolution with selectable pressure units
- Data logging: up to 21,843 records including date, time, pressure, and temperature
- Mounting: panel-mount option
- Calibration: NIST-traceable calibration with data included
- Power: 9 V battery or optional AC adapter
Request a quotation
Contact Indo Multimeter for a quotation on the Additel ADT681-02-CP15-BAR-N2-PB-DL. Include pressure range, mounting, medium, and logging requirements. indomultimeter-seo-rewrite-v1
