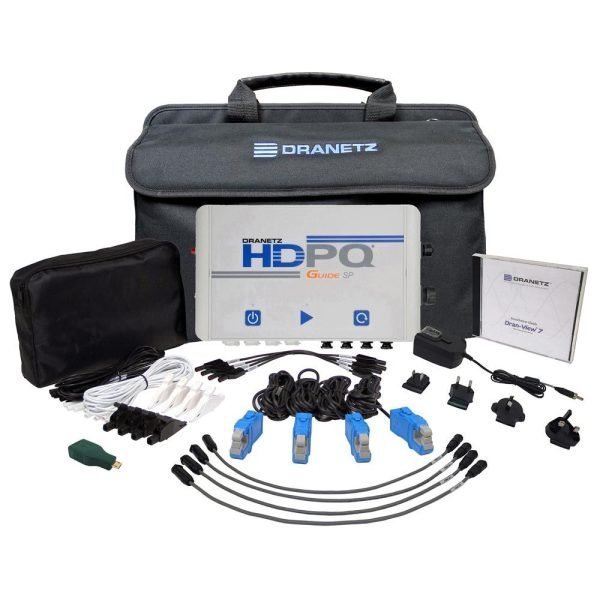

Dranetz HDPQ-SPGA550PKG Power Quality Analyzer
The Dranetz HDPQ-SPGA550PKG is a high-definition power quality analyzer designed for demanding industrial and commercial applications. With 8 channels (4 voltage, 4 current) and 512 samples per cycle, it provides precise measurement of voltage, current, power, and energy. It captures transients as fast as 1 microsecond and up to 2000Vpk, exceeding standard requirements. The analyzer is compliant with IEC 61000-4-30 Class A and IEEE 1159, and offers harmonic analysis per IEC 61000-4-7 and IEEE 519.
Key Features & Highlights
- High-Definition PQ & Energy Monitoring: 1000Vrms AC/DC, 512 samples/cycle
- High-Speed Digitized Transients: Capture to 1 microsecond, up to 2000Vpk
- 8 Channels: 4 voltage and 4 current inputs
- AnswerModules: Automatic event categorization for sag directivity, PF capacitor identification, and motor analysis
- Advanced PQ Compliance: IEC 61000-4-30 Class A, IEEE 1159, IEC 61000-4-7, IEEE 519
- Transient Capabilities: Voltage and current waveshape triggers, 10,000 cycle pre/post trigger buffer
- Communications: Ethernet, Wi-Fi, USB, Bluetooth, VNC remote control, Apple & Android apps
- Safe & Rugged: IP65 enclosure, arc flash safety, UL/cUL listed, CE approved
- User Interface: Tablet-like GUI, icon-driven, taskbar shortcuts, dashboard
- Productivity Tools: Mini-report XML, power quality & energy dashboards, Dran-View 7 analysis software
Applications
Ideal for power quality audits, energy efficiency assessments, harmonic studies, and troubleshooting in industrial facilities, commercial buildings, and utility substations. Suitable for engineers and technicians requiring reliable, accurate data for power quality management and compliance reporting.
