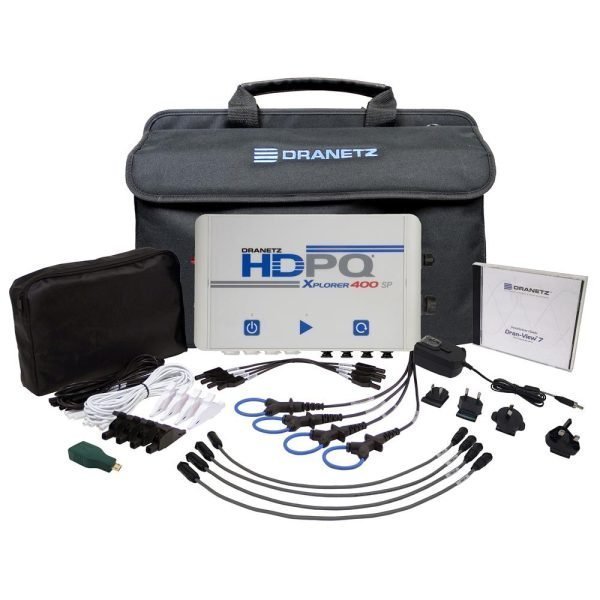

Dranetz HDPQ-SPX4AMFLEX3PKG Power Analyzer
The Dranetz HDPQ-SPX4AMFLEX3PKG is a top-tier power quality analyzer from Dranetz, designed for comprehensive monitoring and analysis in demanding industrial, commercial, and data center environments. This instrument combines high-definition measurement capabilities with rugged construction, making it an essential tool for power quality surveys, energy management, and compliance testing.
Key Features & Highlights
- High-Definition PQ & Energy Monitoring: Measures up to 1000Vrms AC/DC with 512 samples/cycle for precise waveform analysis.
- High-Speed Transient Capture: Digitizes transients up to 1 microsecond, capturing events from 10 to 2000Vpk to ensure no disturbance goes unnoticed.
- 8-Channel Configuration: Simultaneously monitors 4 voltage and 4 current channels for comprehensive three-phase analysis.
- Advanced Compliance: Meets IEC 61000-4-30 Class A and IEEE 1159 standards for power quality measurements, plus IEC 61000-4-7 and IEEE 519 for harmonics.
- Automatic Event Categorization: AnswerModules automatically classify events such as sags, swells, and transients, reducing analysis time.
- Rugged & Safe Design: IP65 enclosure for harsh and outdoor environments, with UL/cUL listing and CE approval for arc flash safety.
- Flexible Connectivity: Ethernet, Wi-Fi, USB, and Bluetooth interfaces, with VNC remote control and mobile apps for real-time monitoring.
- Comprehensive Software: Includes Dran-View 7 analysis software with rescue and post-processing tools for in-depth data evaluation.
Applications
This power analyzer is ideal for a wide range of applications, including:
- Power quality surveys and diagnostics in industrial facilities
- Monitoring 400Hz systems for naval, aviation, and military use
- Energy management and load surveys for efficiency improvements
- Motor testing, fault recording, and transient analysis
- Inrush testing for transformers and motors
- Compliance testing to EN 50160 and other standards
- Alternative energy production monitoring (solar, wind) including inverters and grid interconnect
- Outdoor and harsh environment monitoring requiring IP65 protection
